Button Function
The Memory LED flashes red quickly three times. The microSD card of
the GNSS receiver is formatted. The Memory LED continues to flash
red as the SD card is formatted.
Press and hold buttons for 10 s.
The System RAM on the GNSS receiver is formatted. Settings of all
installed software will be deleted. The Storage, RTK Base and RTK
Rover LEDs flash red. The Position LED flashes yellow quickly three
times. After the formatting the System RAM, the GNSS receiver is
turned off.
Press and hold buttons for 15 s.
The registry of the GNSS receiver is deleted. Windows CE and
Bluetooth communication settings will be reset to factory defaults.
The Storage, RTK Base and RTK Rover LEDs flash red. The Position
LED flashes yellow quickly three times. After deleting the registry, the
GNSS receiver is turned off.

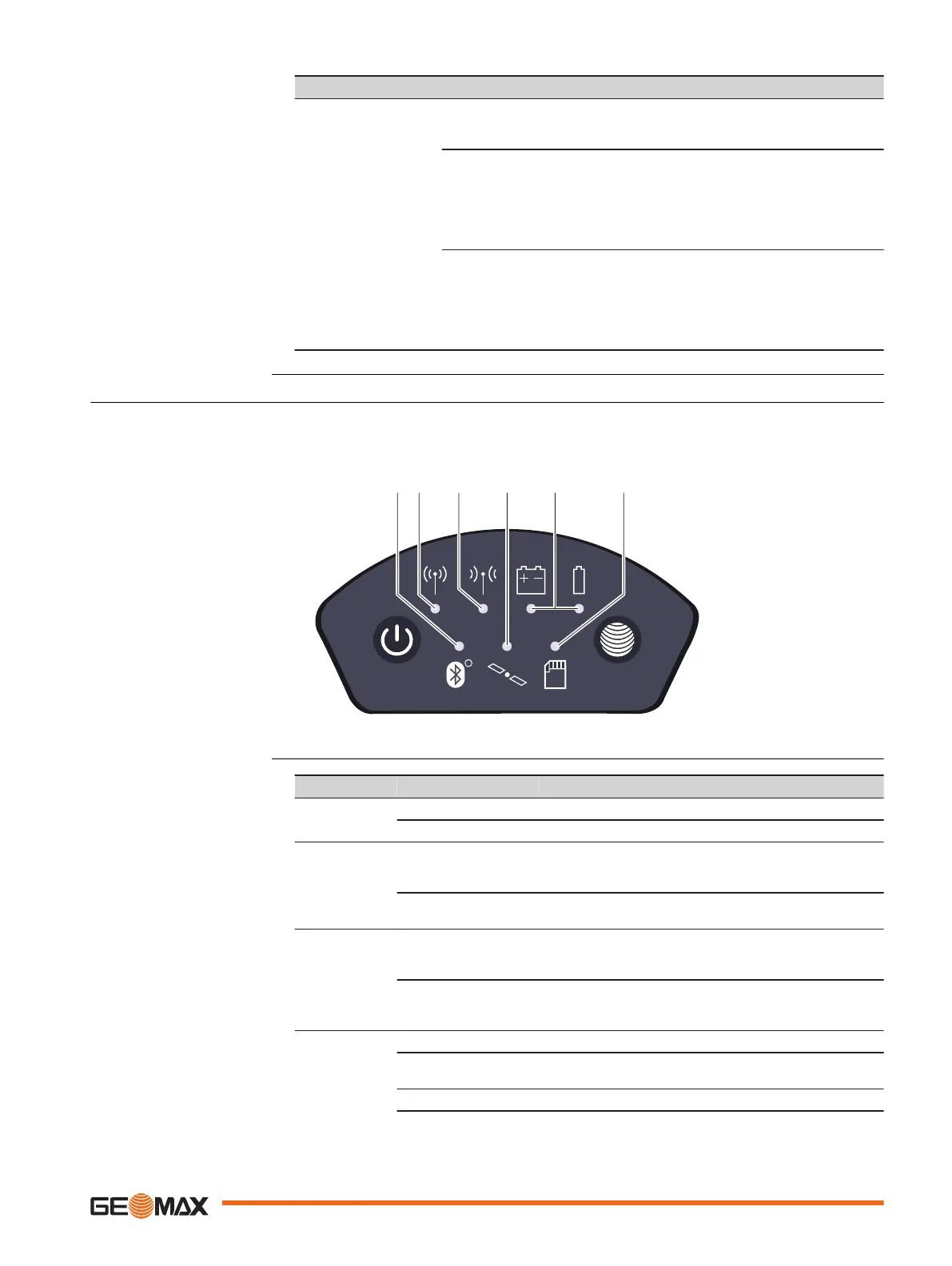

3.2 LED Indicators
The GNSS receiver has Light Emitting Diode indicators. They indicate the basic instrument
status.
a Bluetooth LED
b RTK Base LED
c RTK Rover LED
d Position LED
e Power LEDs
f Storage LED
IF the is THEN
Bluetooth LED green Bluetooth is in data mode and ready for connecting.
blue Bluetooth has connected.
RTK Base LED green the GNSS receiver is in RTK base mode. No RTK data
is being passed to the interface of the communication
device.
flashing green the GNSS receiver is in RTK base mode. Data is being
passed to the interface of the communication device.
RTK Rover
LED
green GNSS receiver is in rover mode. No RTK data is being
received at the interface of the communication
device.
flashing green the GNSS receiver is in rover mode. RTK data is being
received at the interface of the communication
device.
Position LED off no satellites are tracked.
flashing yellow fewer than four satellites are tracked, a position is not
yet available.
yellow a navigated position is available.
Description
Description of the LEDs
User Interface 17
