27XLp Installation & Configuration, June 2010

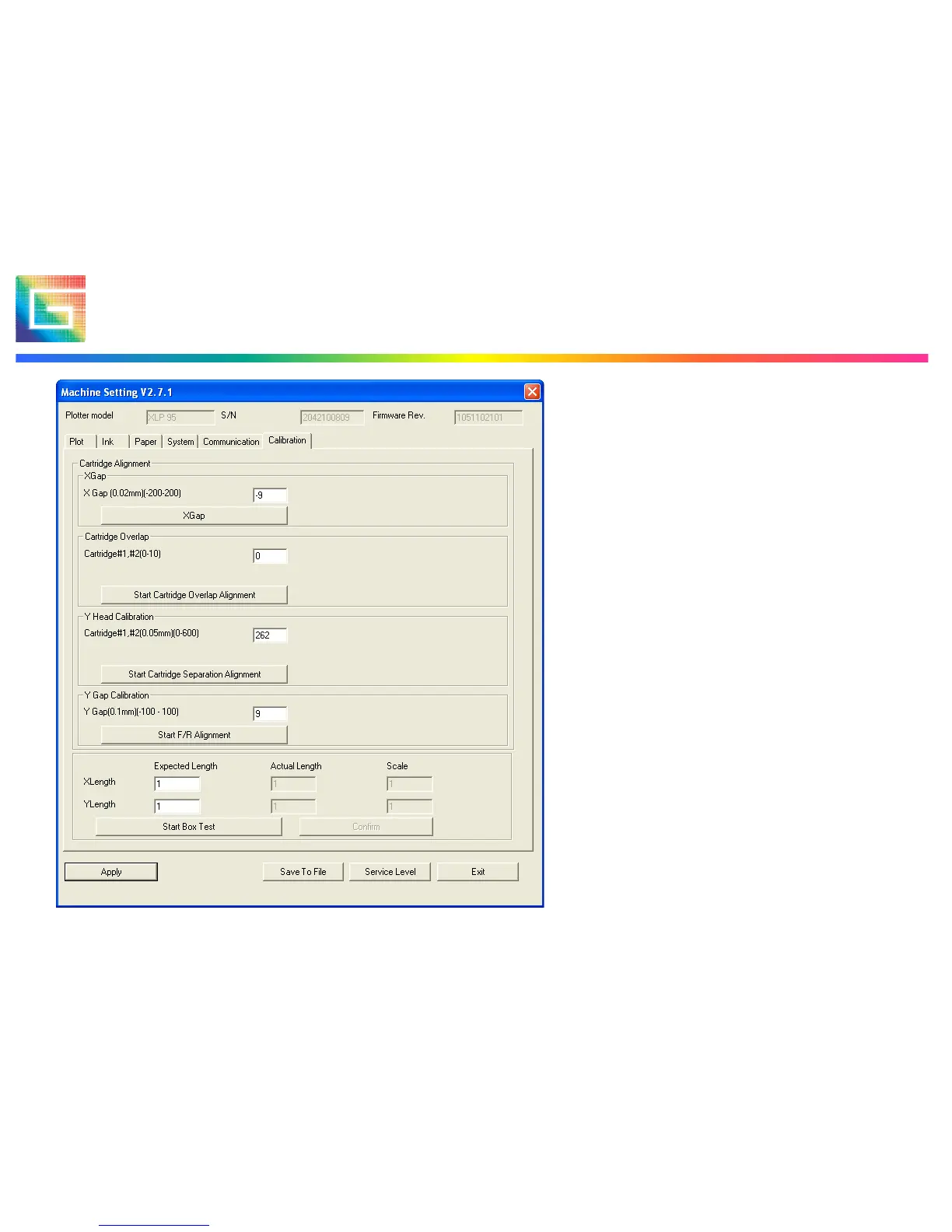

Machine Setting: Calibration tab
Used to perform the required
calibrations at first install and
at cartridge change.
XLp50 does not have
cartridge overlap & cartridge
separation alignments'
Each plotter leaves the
factory “Calibrated” and the
values stored in the firmware
will be uploaded to the XLp
I/F after communication
between the plotter and XLp
I/F has been done.
To Next Page
