30XLp Installation & Configuration, June 2010
Cartridge Alignment: Separation
1. Click the Start Cartridge Separation Alignment button to run
the Y Head calibration.
NOTE: The plotter will begin printing.

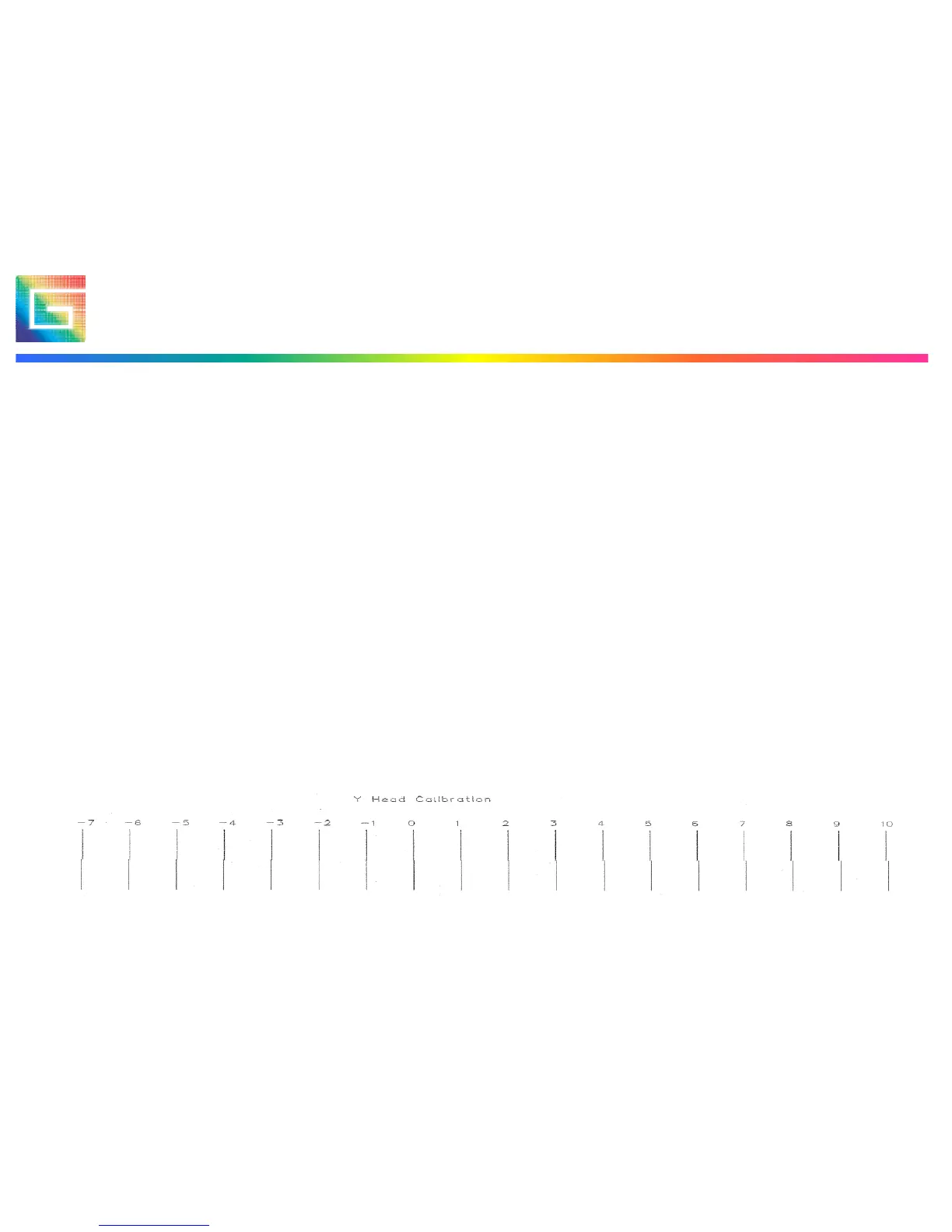

2. Check the plot for the line and corresponding numeric value that
represents the best match of the two printed lines.
3. Add or subtract the numeric value from step 2 from the current
value.
4. Enter the numeric value from step 3 in the Y Head Calibration
box.
5. Click Apply.
6. Repeat the calibration if required.
NOTE: The default value is 261 (2.61 cm or 26.1 mm) on XLp95
