Gerber XLp - Forward Reverse Alignment

31XLp Installation & Configuration, June 2010
Cartridge Alignment: Forward Reverse
1. Click the YGap button to run the Y Gap calibration.
NOTE: The plotter will begin printing.

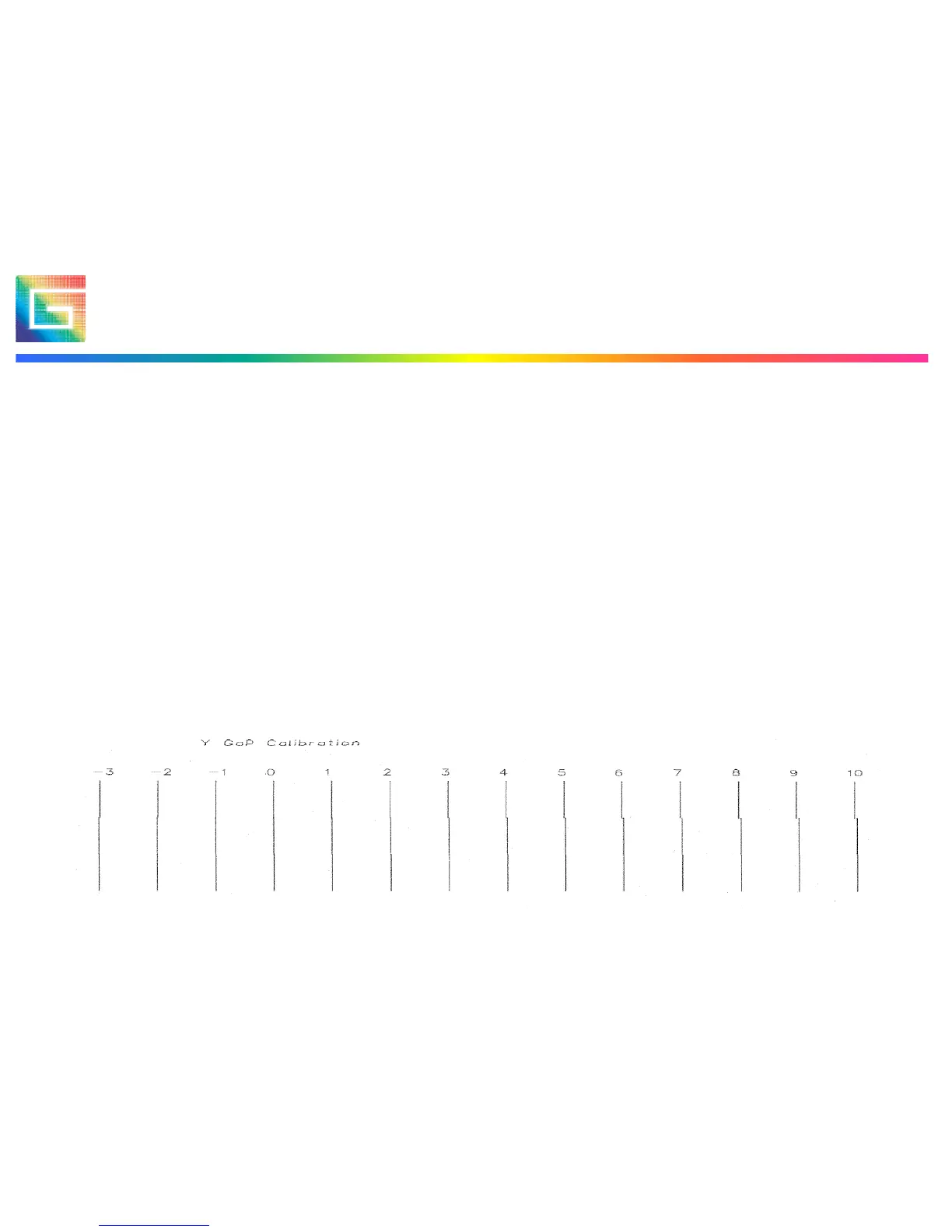

2. Check the plot for the line and corresponding numeric value that
represents the best match of the two printed lines.
3. Add or subtract the value from step 2 from the actual value.
4. Enter the numeric value from step 3 in the Y Gap box.
5. Click Apply.
6. Repeat the calibration if required.
