Cartridge Alignment: Overlap
1. Click the Start Cartridge Overlap Alignment button to run the
Cartridge Overlap calibration.
NOTE: The plotter will begin printing.

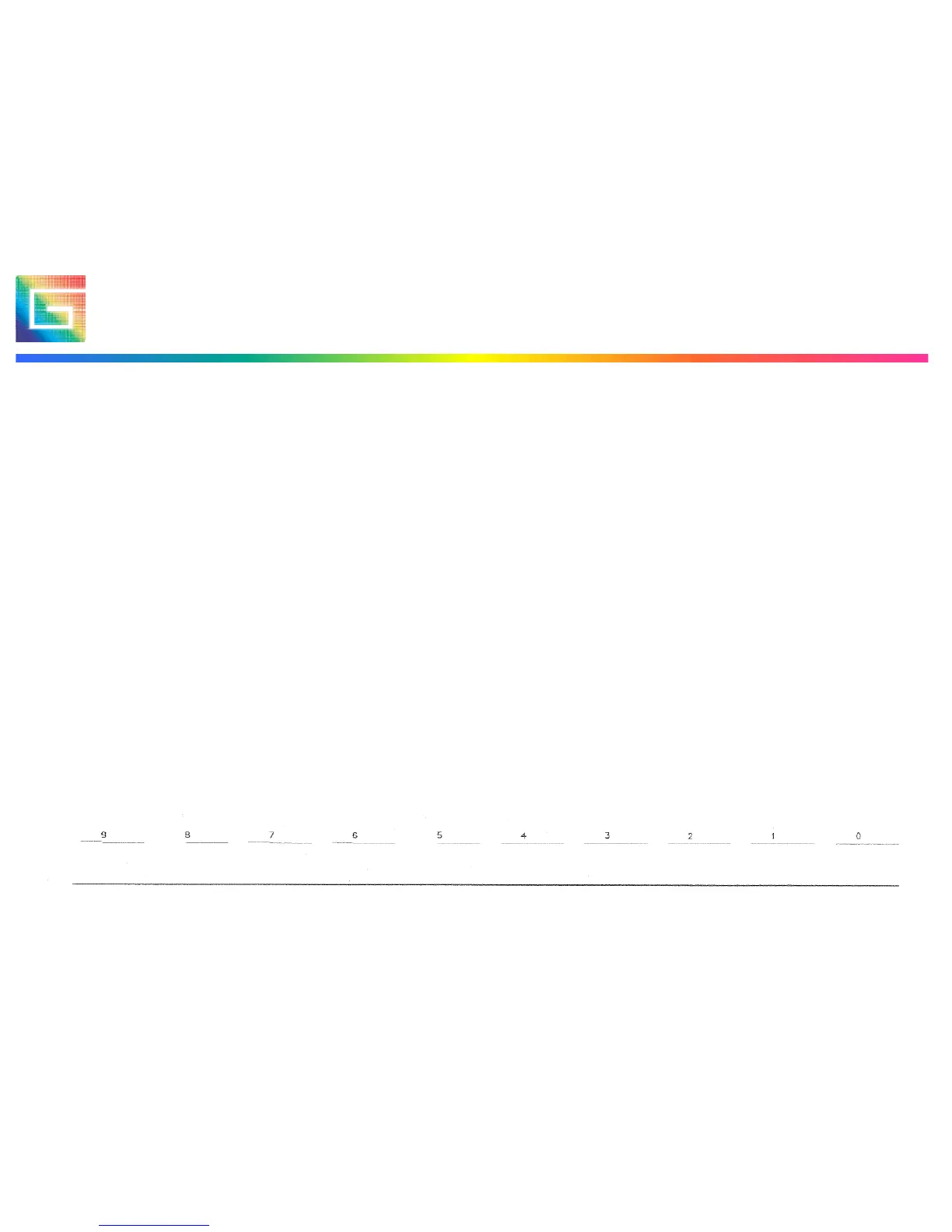

2. Check the plot for the line and corresponding numeric value that
represents the best match of the two printed lines.
3. Enter the numeric value from step 2 in the Cartridge box.
4. Click Apply.
5. Repeat the calibration if required.
NOTE: This alignment is not present on XLp50
