4XLp Installation & Configuration, June 2010
Overview

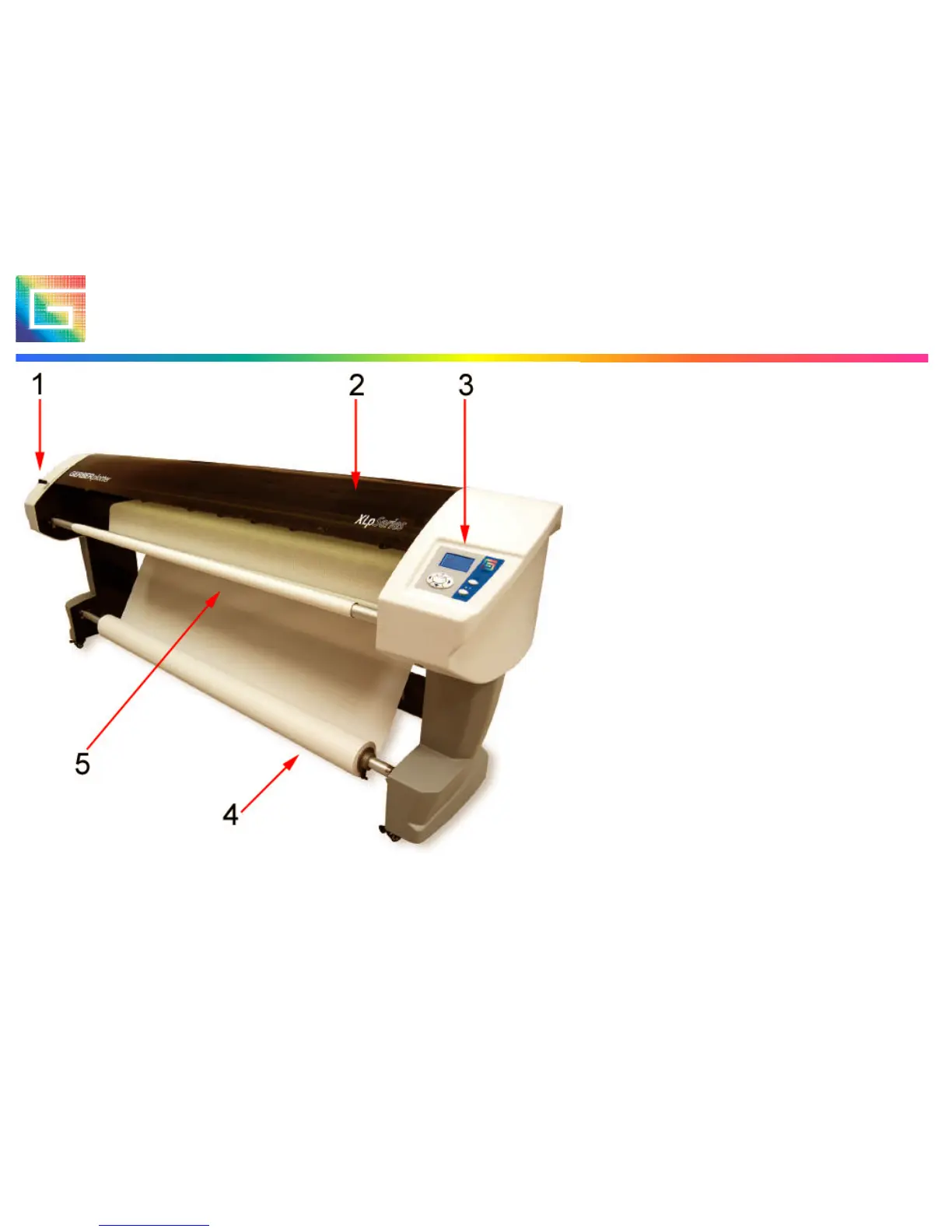

1.Nip Bar Lever : This
lever controls the Nip
Bar and Pinch Rollers.
2.Front Cover
3.Control Panel : Allows
the operator to perform
manual functions.
Currently only English
and Chinese
4.Feed Roll Bar
5.Paper Take-Up Bar : The
paper can be dropped
onto the floor or wound
up on the Paper Take-
Up Bar (CW or CCW)
