9
Ref

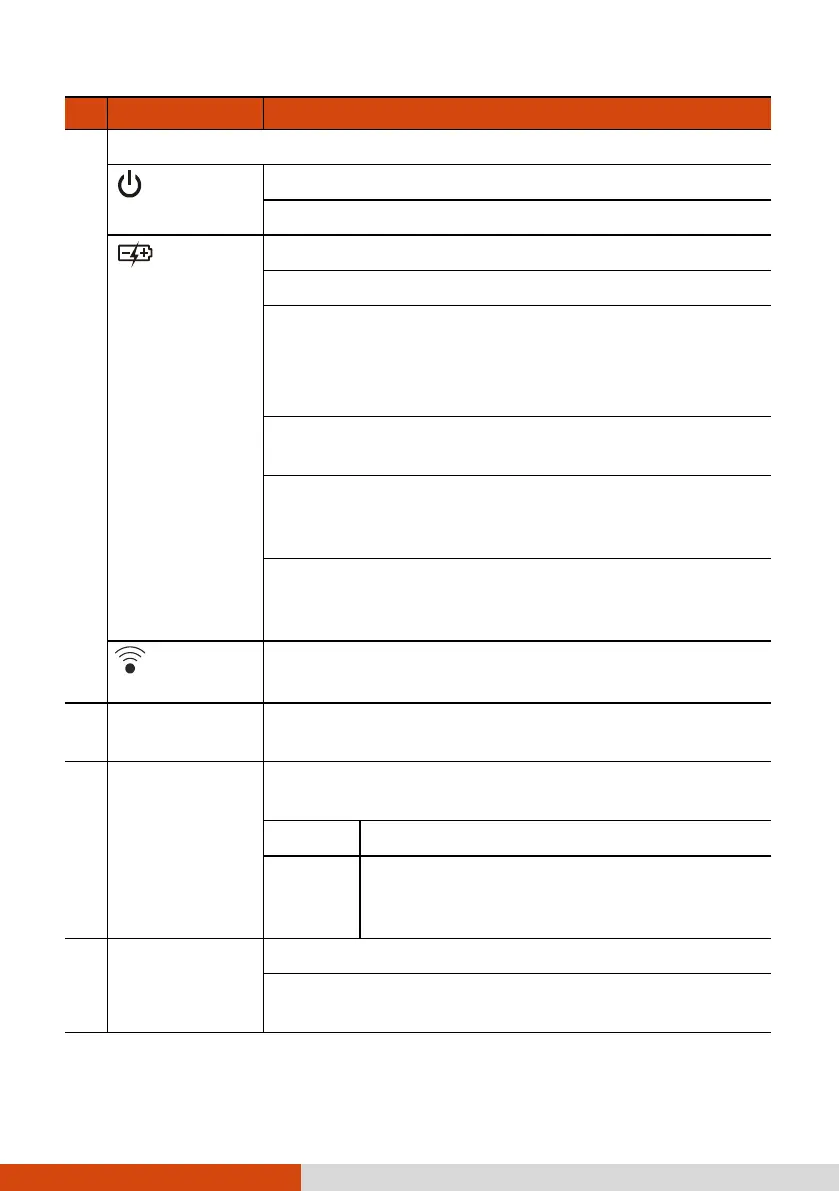

Component Description
Indicators
Power
Lights blue when the power is on.
Blinks blue when the system is in Sleep mode.
Battery
Charge
Lights amber when the battery is being charged.
Lights green when battery charging is completed.
Blinks green to indicate the battery’s built-in high
temperature protection mechanism is activated.
Do not remove the battery during this
period.
Blinks red (once per second) when the battery’s
capacity is below 10%.
Blinks red rapidly (once per 0.5 second) when there
is a thermal protection problem. Ask for repair
service in case this happens.
Blinks amber when the battery charging is in an
abnormal state. Replace the battery in case this
happens.
RF (Radio
Frequency)
Lights blue when the RF radio of any RF feature
(WLAN/BT/WWAN) is on.
Power button
Turns the power on or off. (The default “off” state
is “Sleep mode.”)
Extra button
The default function is Camera or Trigger
depending on your model.
Camera Starts the G-Camera application.
Trigger
Serves as the trigger button for the
barcode reader if your model has the
module.
P1 button Opens or closes the OSD Control Panel.
When pressed longer:
Serves as the Ctrl+Alt+Del keyboard keys.
