CHARGING PROCESS
The steps needed to carry out a recharging session are indicated below (but they may vary according to the
operating mode).
10.1. AUTOSTART
The recharging station is always accessible and ready to begin a charging session as soon as a vehicle is con-
nected.
It's fitted with a selector for choosing the recharging power.

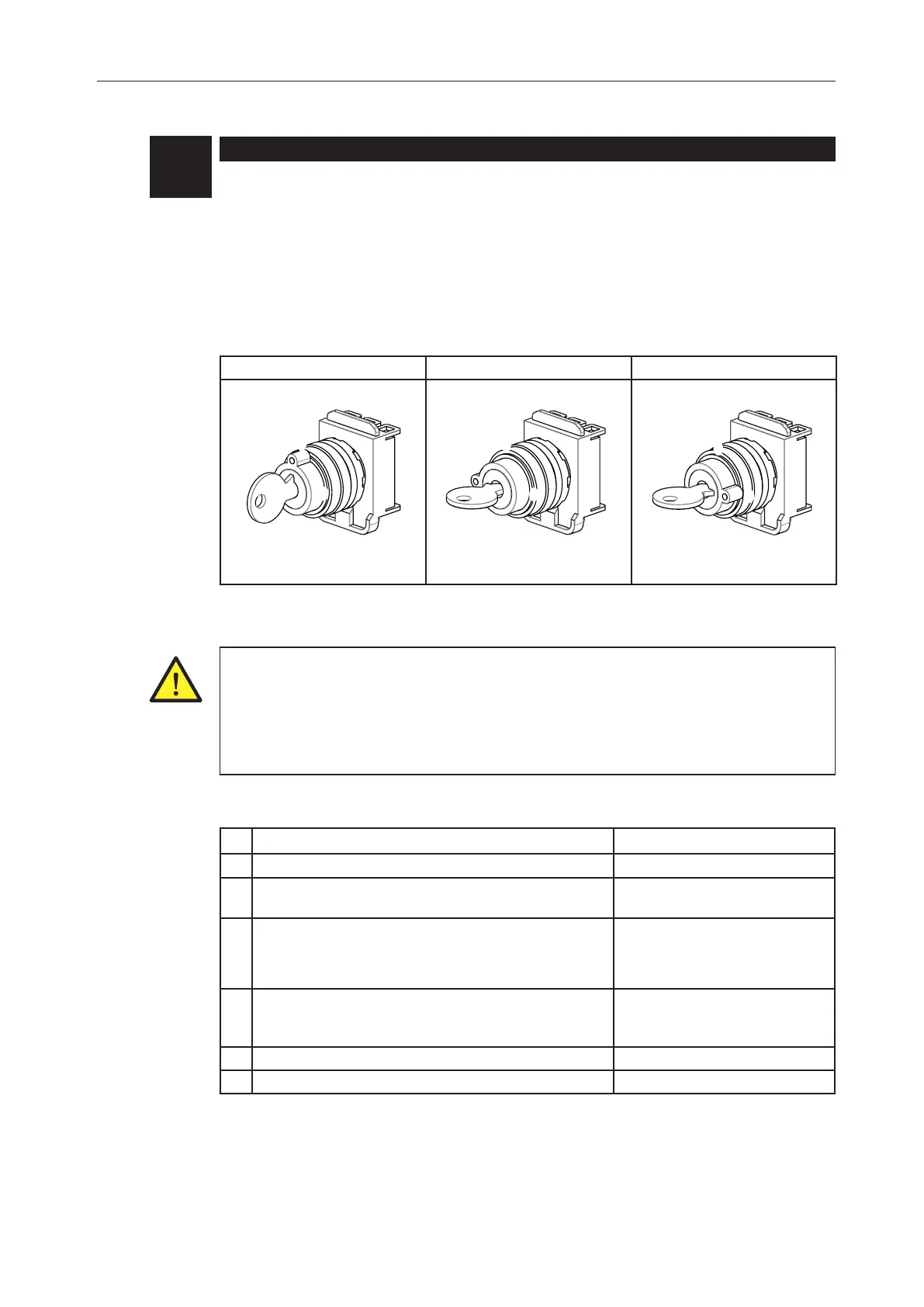

POSITION 0 POSITION 1 POSITION 2
0
2
1
RECHARGING AT 100% OF
NOMINAL POWER
0
2
1
RECHARGING AT 60% OF
NOMINAL POWER
0
2
1
RECHARGING AT 30% OF
NOMINAL POWER
NOTE= For AUTOSTART models with a nominal power of 4.6kW, charging at 30% is forced on a 6A current value
to avoid any possible problems when the charging operation begins.
To enable a recharging session:
# Action to be carried out RGB LED status
1 Make sure there are no errors on the charging station Fixed green
2
Use the selector on the side to decide the
charging power you want to use.
Fixed green
3
Insert the charging plug in the socket-outlet of the station,
and in the vehicle
or
Connect the mobile connector to the vehicle.
Fixed green
4
Once the CP and PP signals have been checked, the recharg-
ing station will mechanically block the plug in the socket-outlet.
The recharging session begins
Flashing blue
5 The vehicle requests energy from the recharging station Fixed blue
6 Recharging session in progress Fixed blue or flashing blue
10.
Some electric car models may have a minimum charge power limit.
To ensure that the minimum charge power selector on the I-CON AUTOSTART station is used correctly, please check this value in
your car instruction manual.
For example, the minimum power limit for the Renault Zoe® is about 1.8kW (8A) for a single-phase recharge and 8.5kW (13A)
for three-phase,so in the case of a 4.6kW I-CON AUTOSTART charging station, the selector will have to be set at 100% or 60%.
A 30% selector setting is lower than the minimum power permitted by the car, so the recharging session will not be started.
