Slimdrive EMD / -F / -F-IS / Invers
8
Operation
3.3 Internal programme switch
The following operating modes can be set using the internal programme switch:
à Position II
aU
Automatic
à Position 0
Na
Night/O
à Position I
D O
Permanent hold-open
à In the 0 programme switch position the operating mode can be changed using a connected display pro-
gramme switch (optional).
à In the programme positions I and II the display programme switch (optional) is used to display the operating
mode set and to output fault messages.
à Special cases (e.g. special circuiting) may occur during the operation of the GEZE door drives. Behaviour may
dier. If this is the case, please ask the service technician responsible.

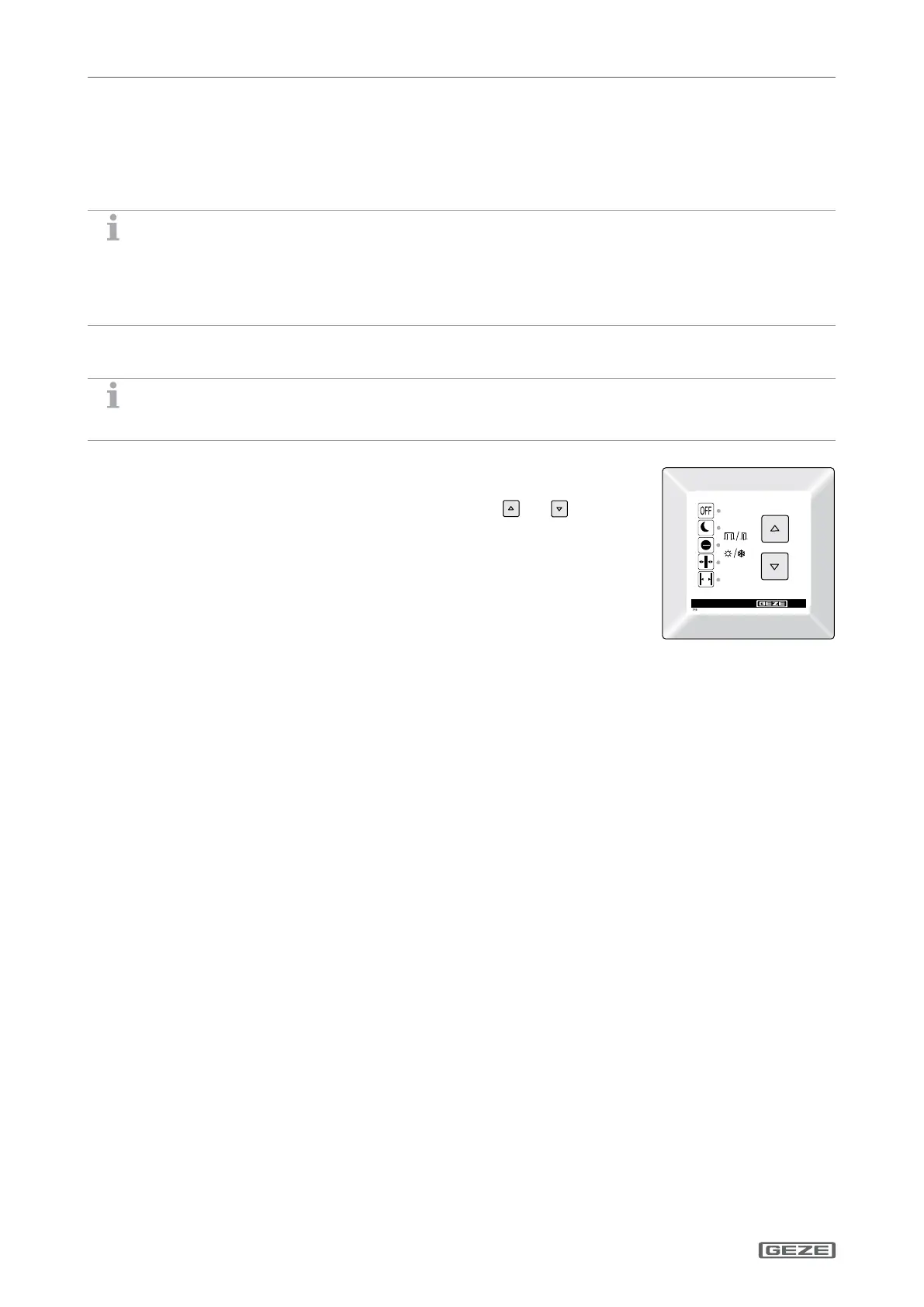

3.4 Button programme switch TPS (optional)
à Can be connected additionally to the internal programme switch.
à Setting of the operating mode using the button programme switch is only possible when the internal pro-
gramme switch is set to the 0 position.
At the button programme switch, the system operating mode is selected
and the corresponding programme is displayed.
X
The desired operating mode is selected by pressing the and
buttons.
The LED of the current operating state lights up.
The button programme switch is accessible for everyone without a key-
operated switch. If desired, an additional key-operated switch can be used
for locking.
When using a key-operated switch:
X
Enable by operating the key-operated switch once briey.
Disabling operation of the button programme switch:
X
Actuate the key-operated switch briey again.
Button programme switch TPS
