Slimdrive EMD / -F / -F-IS / Invers
6
Description
2 Description
2.1 Types of installation and versions
à The door drive unit can be mounted in transom installation on the lintel or in the door leaf in door leaf installation.
à The door drive is available as 1-leaf or 2-leaf version.
2.2 Design
The door system shown is only a schematic diagram.
For technical reasons, we cannot show all of the possibilities here.
The operating elements can be arranged individually.

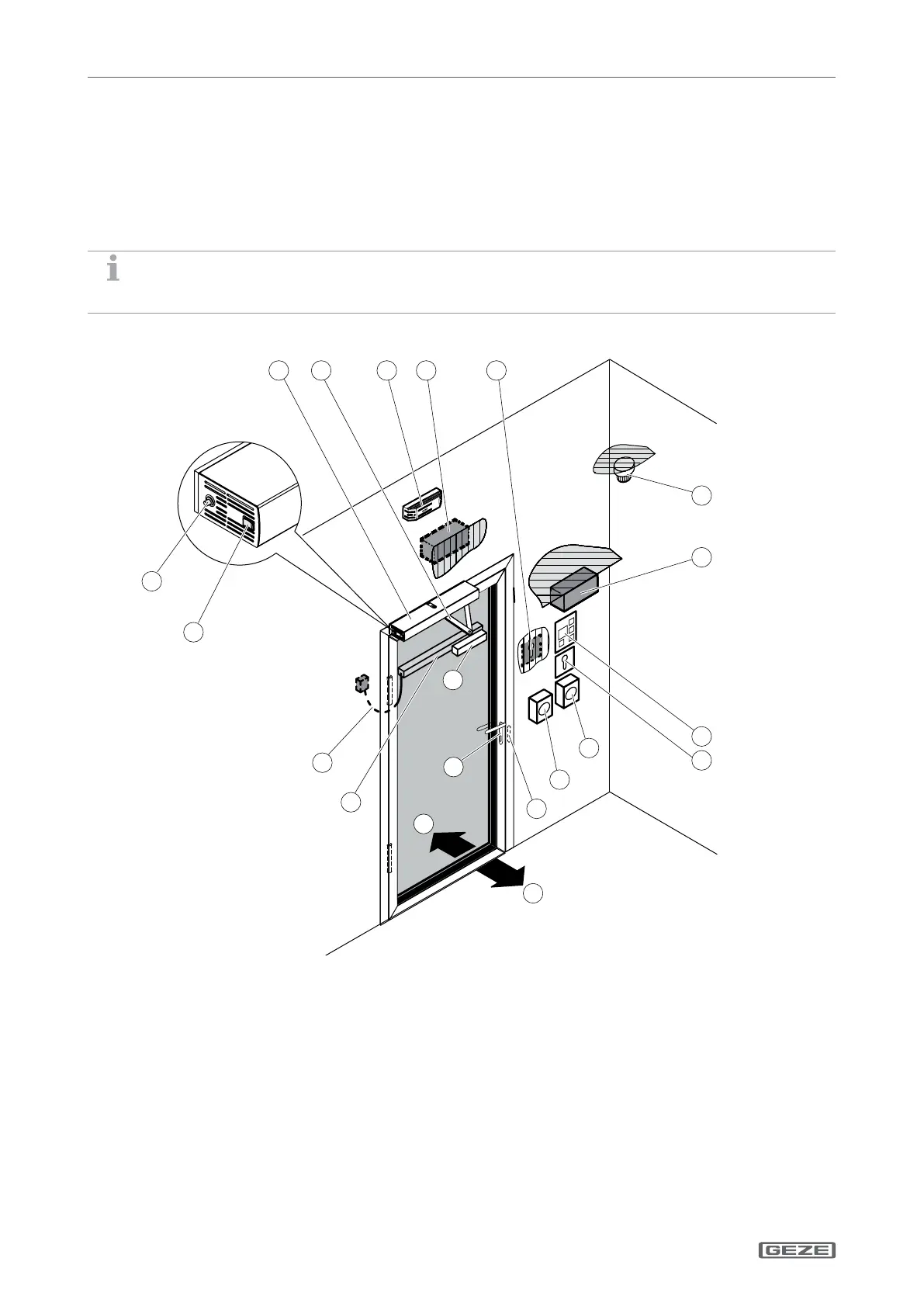

Example: Door drive Slimdrive EMD-F, 1-leaf, transom installation
1 Door drive unit
2 Link arm or lever
3 Smoke switch control unit
2)
4 Outside contactor (KA) (optional)
5 Contactor authorised (KB) (optional)
6 Smoke switch
2)
7 Inside contactor (KI) (optional)
8 Display programme switch (optional)
9 Key-operated switch for enabling
the display programme switch (optional)
10 Emergency stop switch (optional)
11 Circuit breaker "CLOSE DOOR"
2)
12 Electrical door opener (provided by customer)
13 inside
14 outside
15 Door handle with door lock (provided by customer)
16 Safety sensor close (SIS) (optional)
17 Safety sensor open (SIO) (optional)
18 Door transition cable (optional)
19 Internal programme switch
20 Reset button (F-Reset) (only EMD-F)
2)
optional, in conjunction with EMD-F
