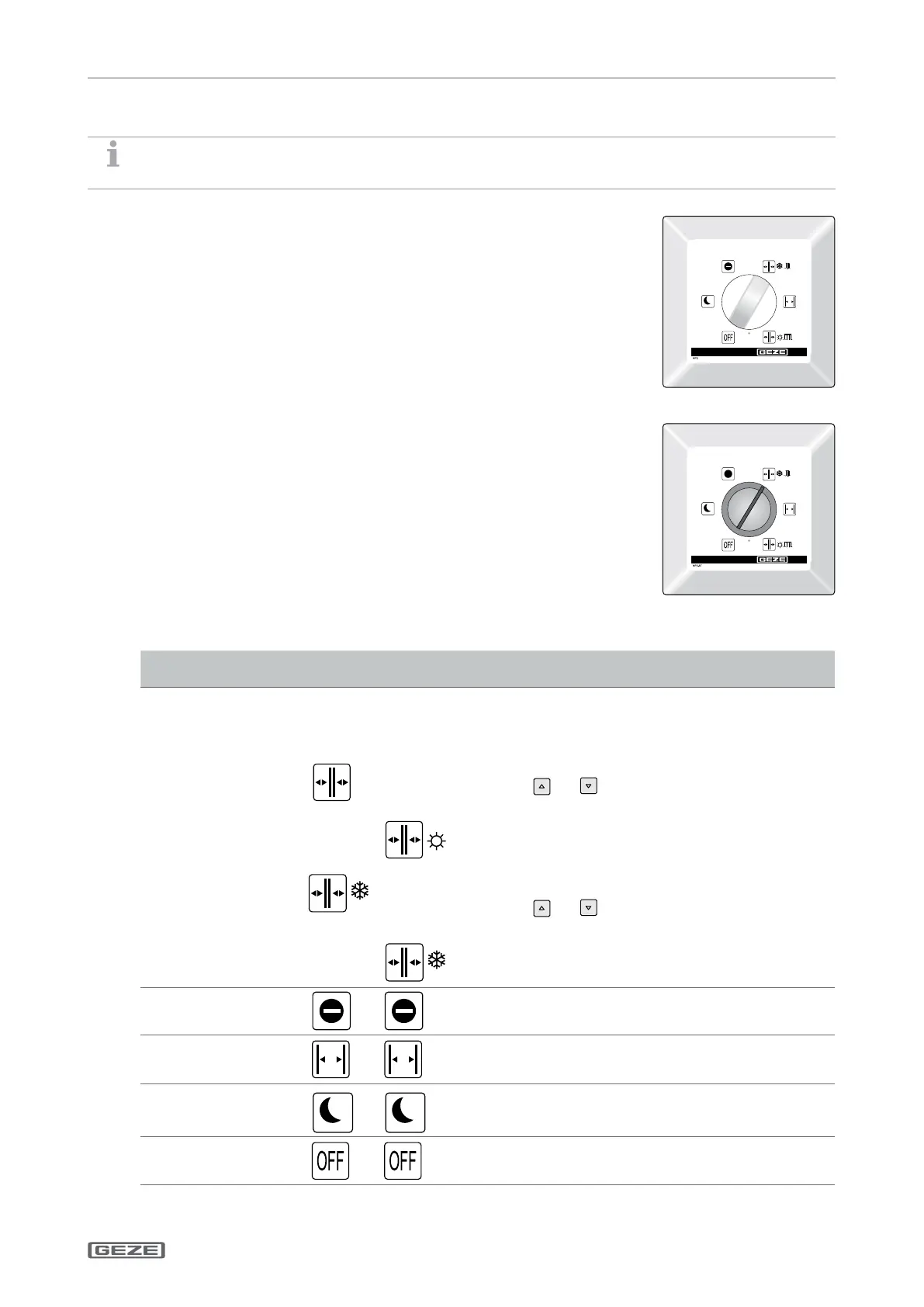

3.5 Mechanical programme switch MPS (optional)
à Can also be connected to the internal programme switch.
At the mechanical programme switch, the system operating mode is
selected and the corresponding programme is displayed.
The mechanical programme switch is accessible for everyone without
a key-operated switch.
The mechanical programme switch MPS-ST must be used for
disabling.
The desired operating mode is selected by using the rotary switch.
Mechanical programme switch MPS
At the mechanical programme switch MPS-ST, the system operating
mode is selected and the corresponding programme is displayed.
Operation of the mechanical programme switch MPS-ST is only
possible with the supplied key.
Disabling the mechanical programme switch MPS-ST:
X
remove the key.
The desired operating mode is selected by using the key-operated
rotary switch.
Mechanical programme switch MPS-ST
with integrated key-operated switch
Operating mode TPS MPS
MPS-ST
Explanatory notes
Automatic Door opens and closes again.
The inside and outside activation is active.
à Opening of 2 leaves With 2-leaf systems:
X
Switch to opening of 2 leaves in all operating modes.
With TPS:
X
Press the and buttons at the same time.
Winter LED extinguishes.
With MPS, MPS-ST
X
Select the opening of 2 leaves at the corresponding position.
à Opening of 1 leaf
Switch to opening of 1 leaf in all operating modes:
With TPS:
X
Press the and buttons at the same time.
Winter LED extinguishes.
With MPS, MPS-ST
X
Select the opening of 1 leaf at the corresponding position.
Shop closing-time
Door only opens and closes if someone exits.
Permanent hold-open
Door remains open.
Night
Door opens and closes only when actuated using the key-
operated switch
Fixed leaf On / O
Door is enabled and can be moved by hand.
