4. Un-clip the three fasteners which hold the front control PCB to the front of the case, and separate the
front PCB from the case.
6.2.2. Replacing Fuses
1. Open the case to remove the power PCB.
2. The four fuses have the following ratings.
Model Supply voltage Fuse Type
VH-2600/VH-2600A 230V
F1
：
1.5A 250V Fast Blow
F2：1.5A 250V Fast Blow
F3：1A 250V Fast Blow
F4：4A 250V Fast Blow

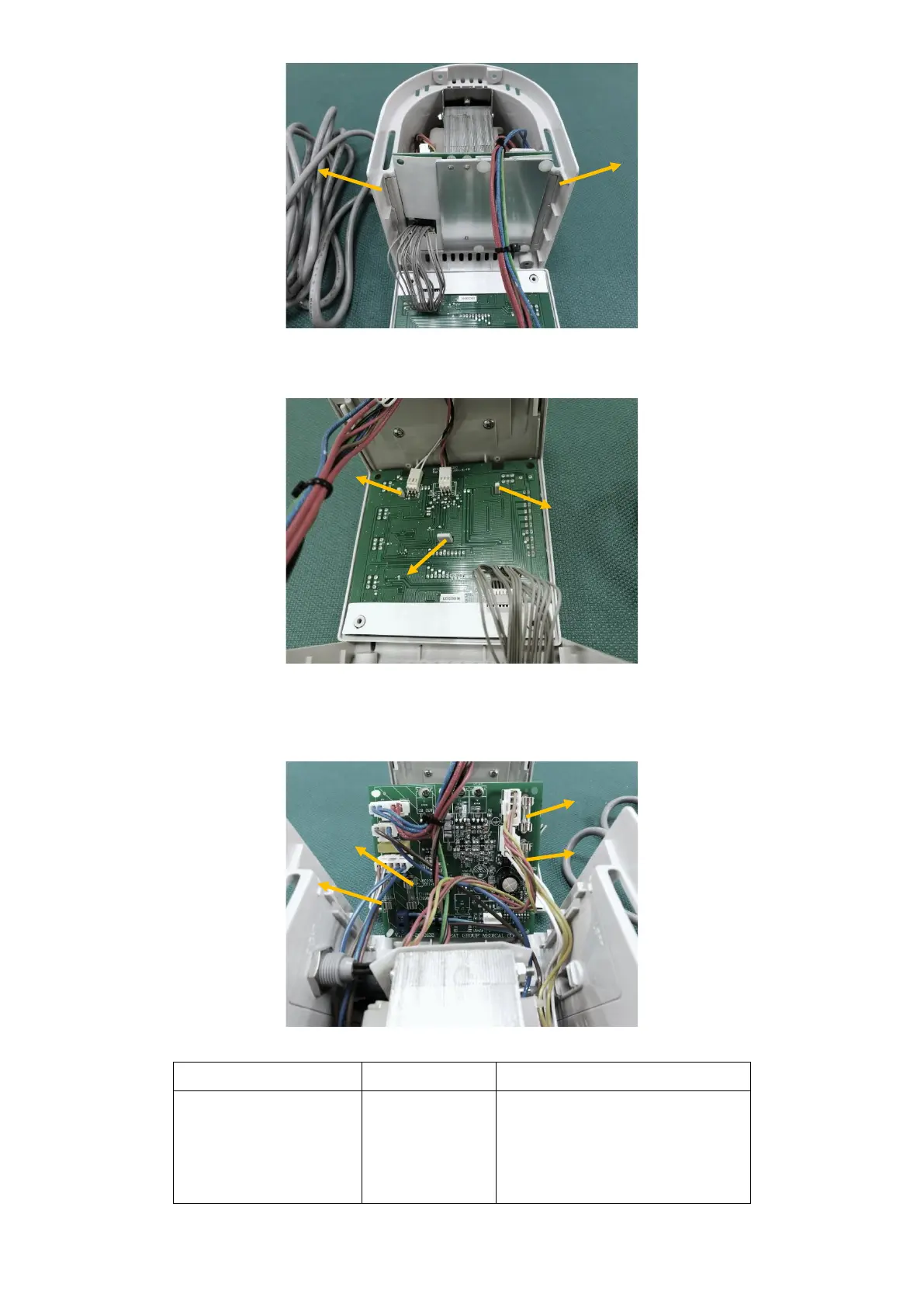

Move the left side
Move the right side
Fixed column 1
Fixed column 2
Fixed column 3
Fuse F 4
Fuse F3
Fuse F1
Fuse F 2
