CF180G2 Technical data (Page 3 of 3)

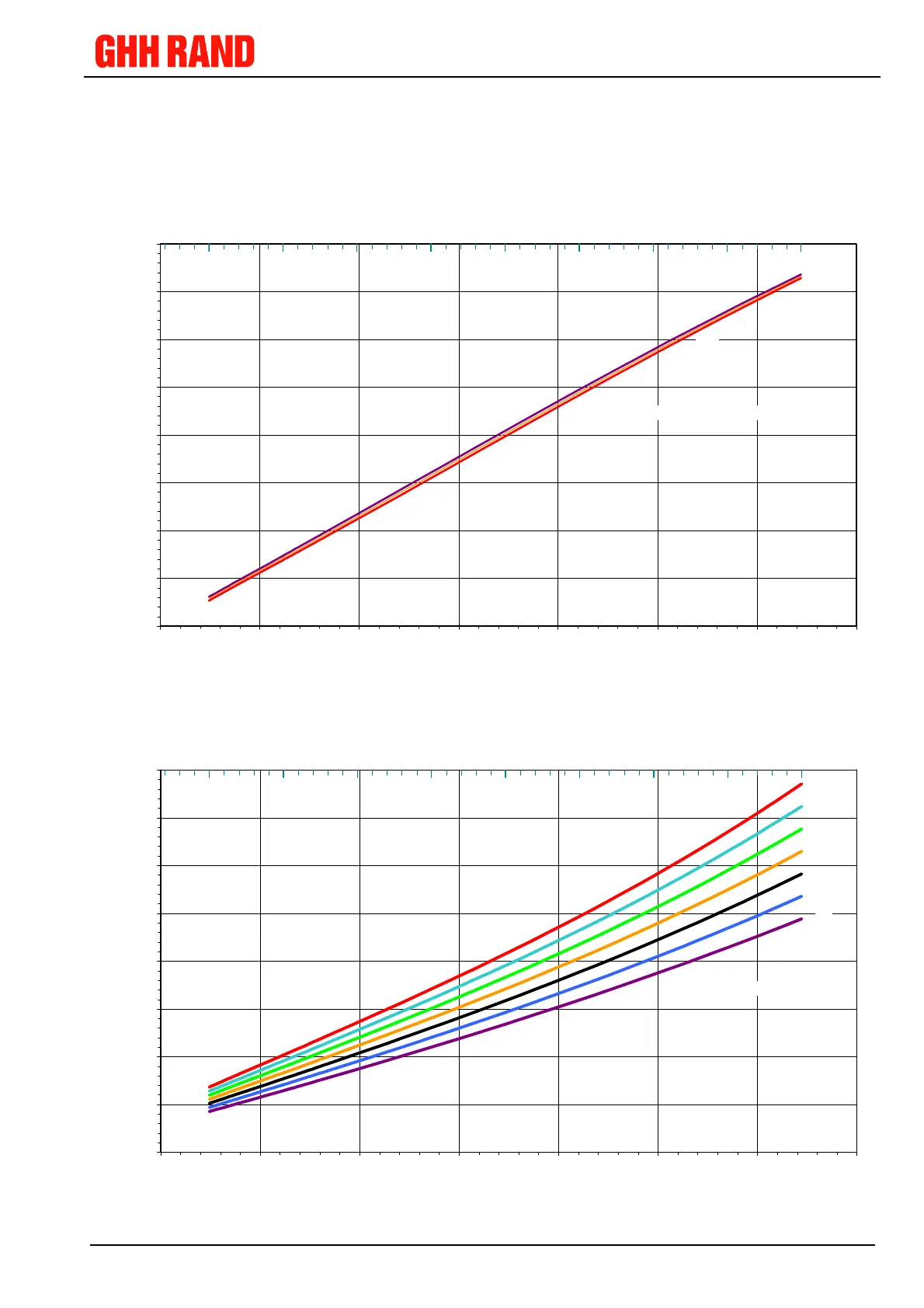

Performance predictions:
5
10
15
20
25
30
35
40
45
500 1 000 1 500 2 000 2 500 3 000 3 500 4 000
Male Rotor Speed in rpm
Suction Volume Flow in m³/min
Male Rotor Tip Speed in m/s
10 20 30 40 50
Disch. Pressure (abs.) in bar
11,5
16,0
Medium: Air, rel. humidity 60 %; suction press. (abs.): 1 bar; suction temp.: 20 °C; disch. temp.: 80 °C; oil quality: ISO VG46
7,0
0
50
100
150
200
250
300
350
400
500 1 000 1 500 2 000 2 500 3 000 3 500 4 000
Male Rotor Speed in rpm
Power Consumption in kW
Male Rotor Tip Speed in m/s
10
20 30 40 50
Disch. Pressure (abs.) in bar
8,5
10,0
11,5
13,0
16,0
Medium: Air, rel. humidity 60 %; suction press. (abs.): 1 bar; suction temp.: 20 °C; disch. temp.: 80 °C; oil quality: ISO VG46
14,5
7,0
