CONNECTING AND INSTALLING THE BATTERY
AND BATTERY HARNESS

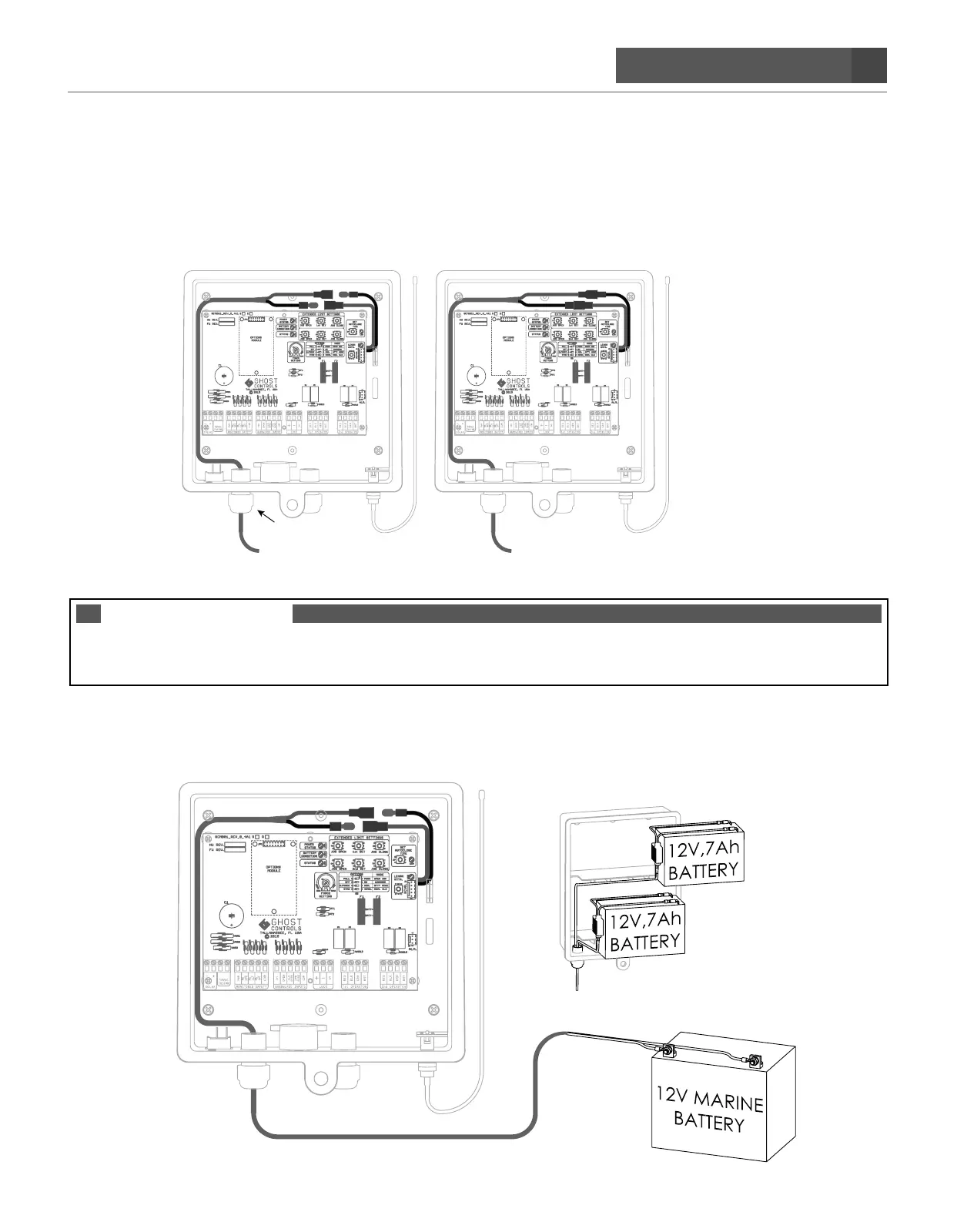

STEP 8. Insert battery harness through strain relief in control box and attach to the control board.
A. Route the battery harness cable through the strain relief on the bottom of the control box and connect the
bullet connectors (red to red, black to black) to the control board harness.
Strain Relief
B. Connect the terminal leads of the battery harness to your battery.
IMPORTANT
YOU NEED A 12V DEEP CYCLE MARINE/AUTOMOTIVE BATTERY OR THE ABBT2 BATTERY BOX KIT.
SYSTEM WILL NOT OPERATE WITHOUT BATTERY INSTALLED AND CONNECTED AT ALL TIMES.
Connect the battery harness from the control box to the battery.
Make sure RED WIRE CONNECTS TO BATTERY’S + TERMINAL. CONNECT FIRST
Make sure the BLACK WIRE CONNECTS TO BATTERY’S  TERMINAL.
(ABBT2) BATTERY BOX KIT
INCLUDES 2 BATTERIES
2ND BATTERY COMPARTMENT
OR
