Ghost Controls Ghost Pro Series - Programming Closed Limit (Pull-To-Open); Important Limit Setting Information; Step 18: Set Closed Limit using Jog Buttons; Step 19: Confirm Closed Limit Settings

35
PULLTOOPEN
PROGRAMMING THE CLOSED LIMIT: PULLTOOPEN
This is the most common installation. The CLOSED limit is when the operator is extended and the gate is in the closed position.
IMPORTANT
ONLY THE OPERATOR ARMS’ EXTENDED LIMIT IS ADJUSTABLE AND CAN BE SET WITH THE CONTROL
BOARD. THE ARMS’ RETRACTED POSITION IS FIXED AND IS NOT ELECTRONICALLY ADJUSTABLE.
THE OPEN POSITION IS SET BY HARDWARE MOUNTING ONLY. Please refer to the hardware installation to
make sure the retracted position is properly set/installed.
Installation Type Retracted Position Extended Position
Pull-To-Open Gate at the fully OPEN position (not
electronically adjustable)
Gate at the CLOSED position (elec-
tronically adjustable)
TURN THE CONTROL BOX ON

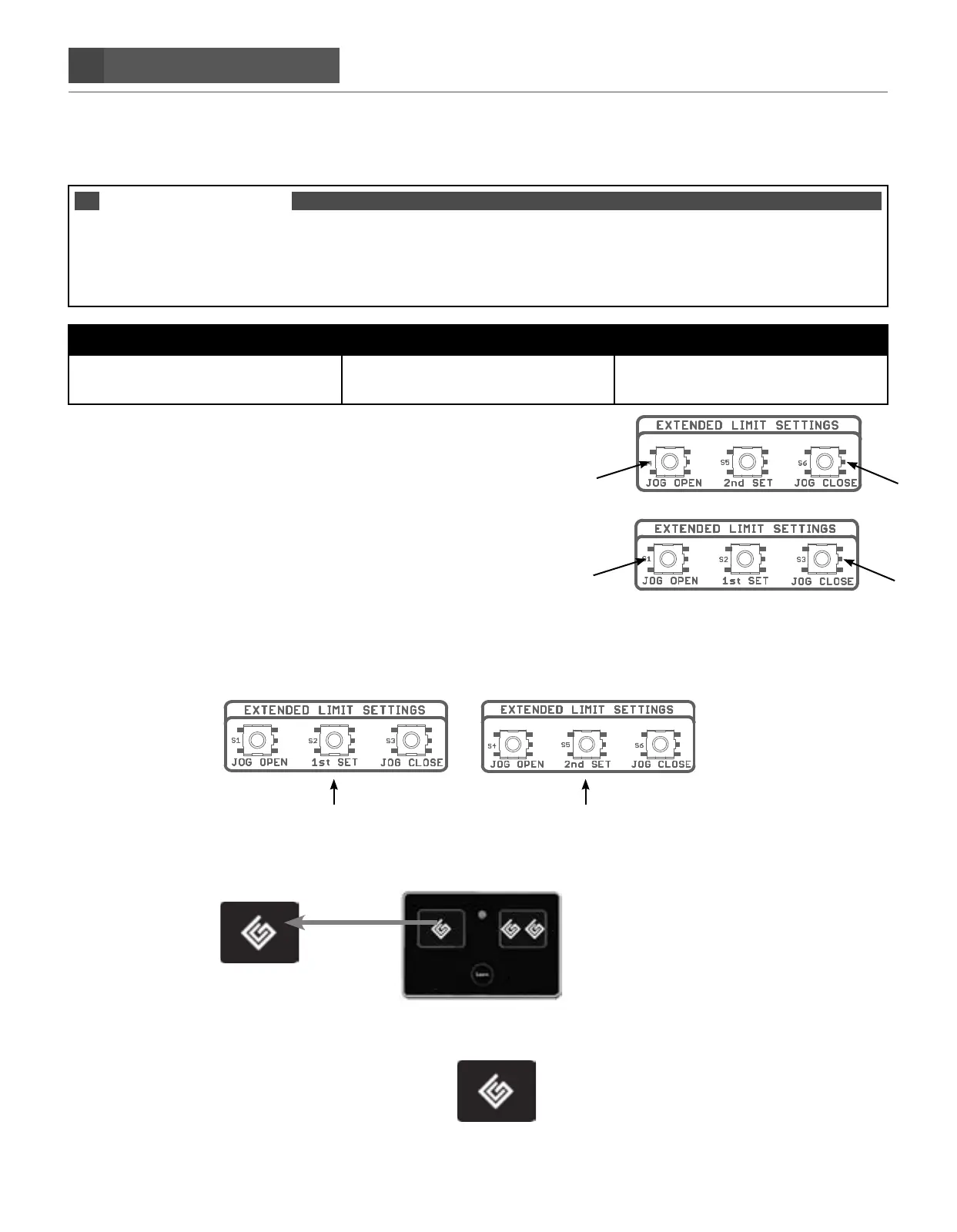

STEP 18. Setting the closed limit
A. Locate the 2nd SET limit settings on the control board and press and
hold the JOG CLOSE button for the second gate until the gate reaches
the desired closed position. The gate can move only if pressure is
maintained. Releasing the JOG button will stop the gate immediately.
Once the 2nd set is in the desired closed position then repeat for
the 1st gate with the 1st SET limit settings JOG CLOSE button.
B. Both JOG OPEN or JOG CLOSE buttons are needed to ‘fine-tune’ your desired CLOSED position.
STEP 19. Press and hold the 1st set limit button on the control panel until it beeps, then release.
Then Press and hold the 2nd set limit button until it beeps, then release
STEP 20. Press the transmitter button to activate the gates and let the gate open fully.
You should hear a single beep.
When the gate reaches its OPEN position, the control board will sound a single beep, confirming the CLOSED limit has
been set.
A. Confirm the newly programmed CLOSED limit by pressing the remote transmitter button to activate the gate and confirm
the closed position has been set correctly. This limit is stored and remembered even if you lose power.
B. Repeat STEPS 18-20 if needed to change your desired CLOSED position.
C. Test your system with the remote transmitter to make sure it opens and closes without errors.
2ND SET LIMIT SETTINGS
1ST SET LIMIT SETTINGS
