FT-M1211A 22
Connecting to the electrical supply
The electrical installation of the machine must only be performed by qualified
personnel.
- - Make sure that the supply voltage is correct and that the wattage of your system is sufficient
before connecting the machine.
The supply cable should be protected at the head of the line ( at the circuit breaker box)
* Gauge 4 mm² in 230V.
* Gauge 2.5 mm² in 400V.
* 3 phase cable

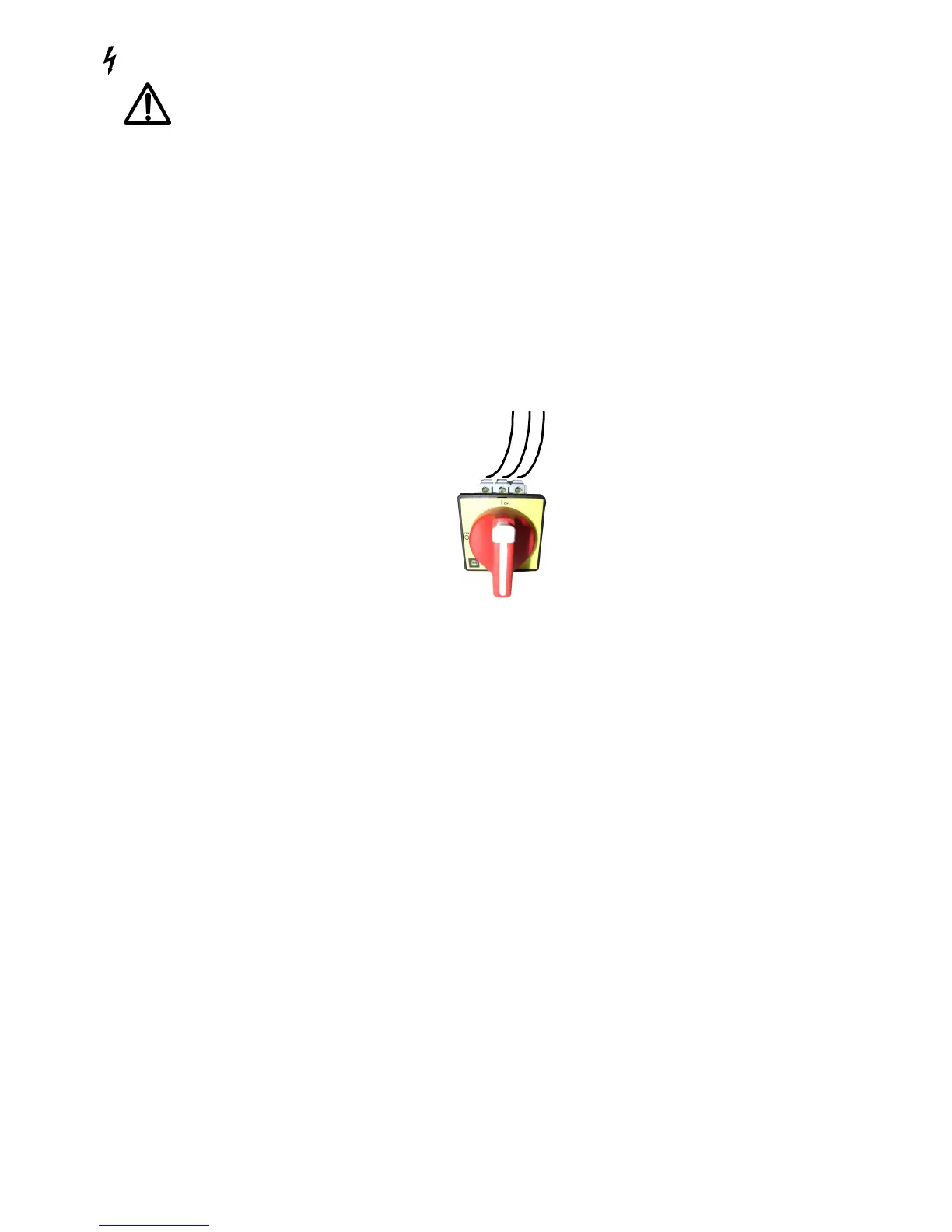

- Connected by a 4 conductor cable.
L1 Phase 1
L2 Phase 2
L3 Phase 3
PE Ground wire
All of the electrical connections with the machine that preceed must be connected following
the norms in vigor
For more details refer to the electric schemas of the machine(s)
Note: Not respecting these conditions will lead to a deterioration of the electrical
and mechanical elements as soon as the machine is put into use.
Adjustments after machine is in place:
- Test the voltage and the direction of the rotation of the motors.
The adjustment of the speed is done with the aid of the SCHNEIDER touch screen, see the
section Automation.
L1
L2 L3
