Hardware Installation

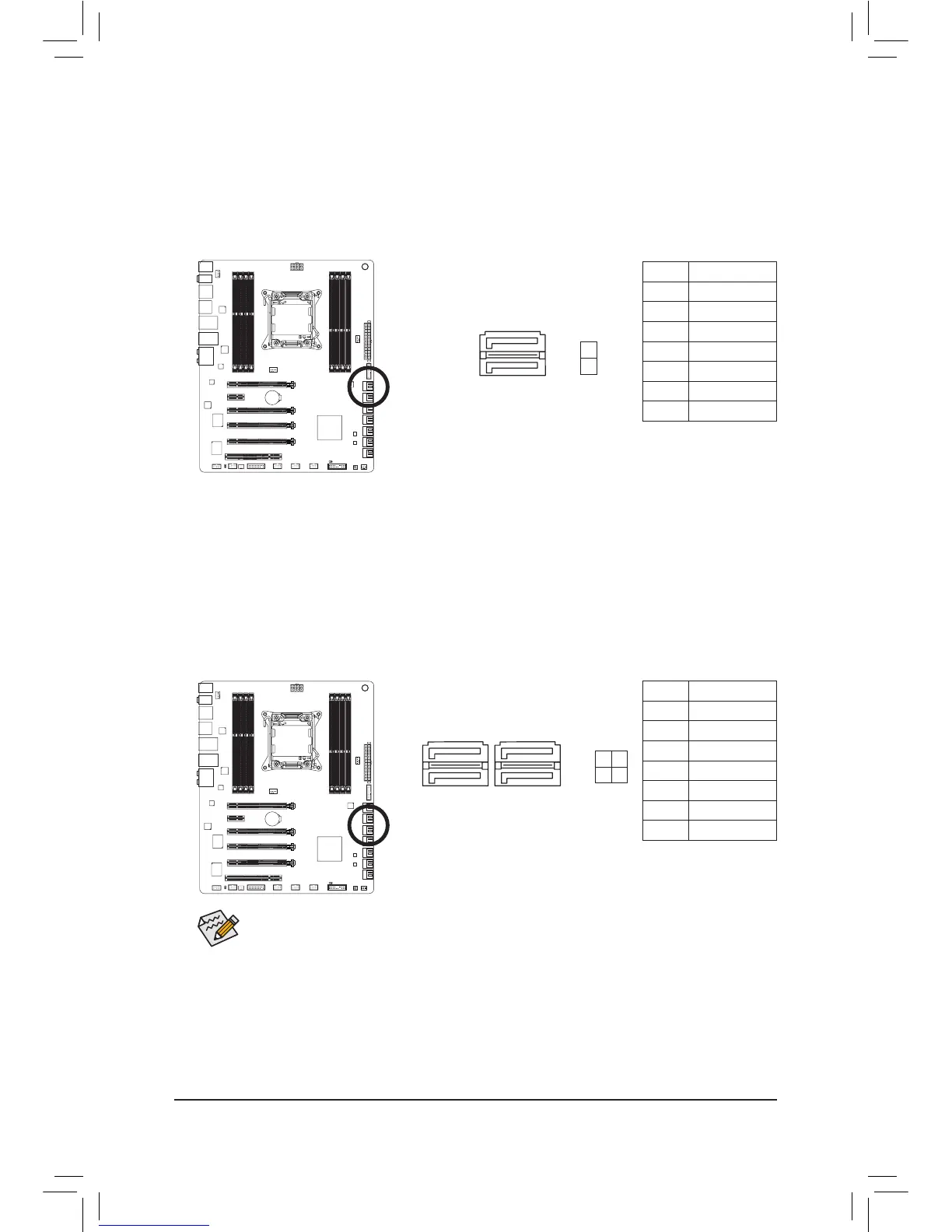

7) SATA22/3/4/5(SATA3Gb/sConnectors,ControlledbyIntelC606Chipset)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device. The Intel C606 Chipset supports RAID 0, RAID 1,
RAID 5, and RAID 10. Refer to Chapter 5, "Conguring SATA Hard Drive(s)," for instructions on conguring
a RAID array.
7
7
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
1
1
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
6) SATA30/1(SATA6Gb/sConnectors,ControlledbyIntelC606Chipset)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The "SATA3 0" and "SATA3 1"
connectors support RAID 0 and RAID 1. RAID 5 and RAID 10 can be implemented on the two connectors with
the "SATA2 2/3/4/5" connector
(Note)
. Refer to Chapter 5, "Conguring SATA Hard Drive(s)," for instructions
on conguring a RAID array.
7 1
7 1
DEBUG
PORT
G.QBOFM
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
• A RAID 0 or RAID 1 conguration requires at least two hard drives. If more than two hard drives
are to be used, the total number of hard drives must be an even number.
• A RAID 5 conguration requires at least three hard drives. (The total number of hard drives does
not have to be an even number.)
• A RAID 10 conguration requires four hard drives.
(Note) When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance
of the RAID set may vary depending on the devices being connected.
1
0
SATA3
SATA2
5 3
4 2
