(Note) Enter the Digital Output(Optical) screen to configure further settings if you use the S/PDIF Out
connector(s) on the back panel for digital audio output or enter the Digital Outputscreen if you use
the internal S/PDIF Out connector (SPDIF_O) for digital audio output.
5-3-2 ConguringS/PDIFOut
The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio quality.
1.ConnectingaS/PDIFOutCable:

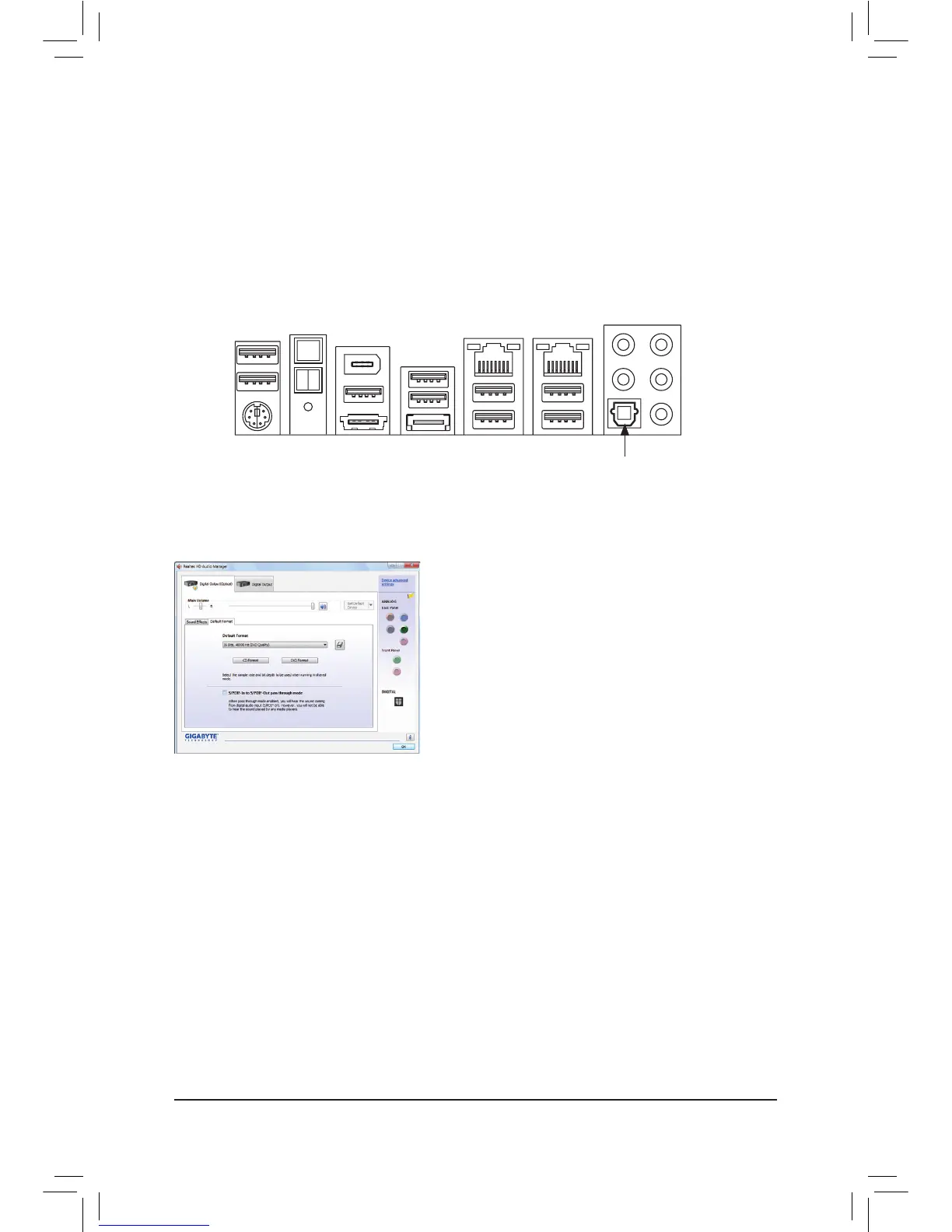

Connect a S/PDIF optical cable to the corresponding S/PDIF out connector as shown below and an external
decoder for transmitting the S/PDIF digital audio signals.
2.ConfiguringS/PDIFOut:
On the DigitalOutput(Optical) screen
(Note)
, click the DefaultFormat tab and then select the sample rate and
bit depth. Click OK to complete.
Connects to a S/PDIF optical cable
O.C.
