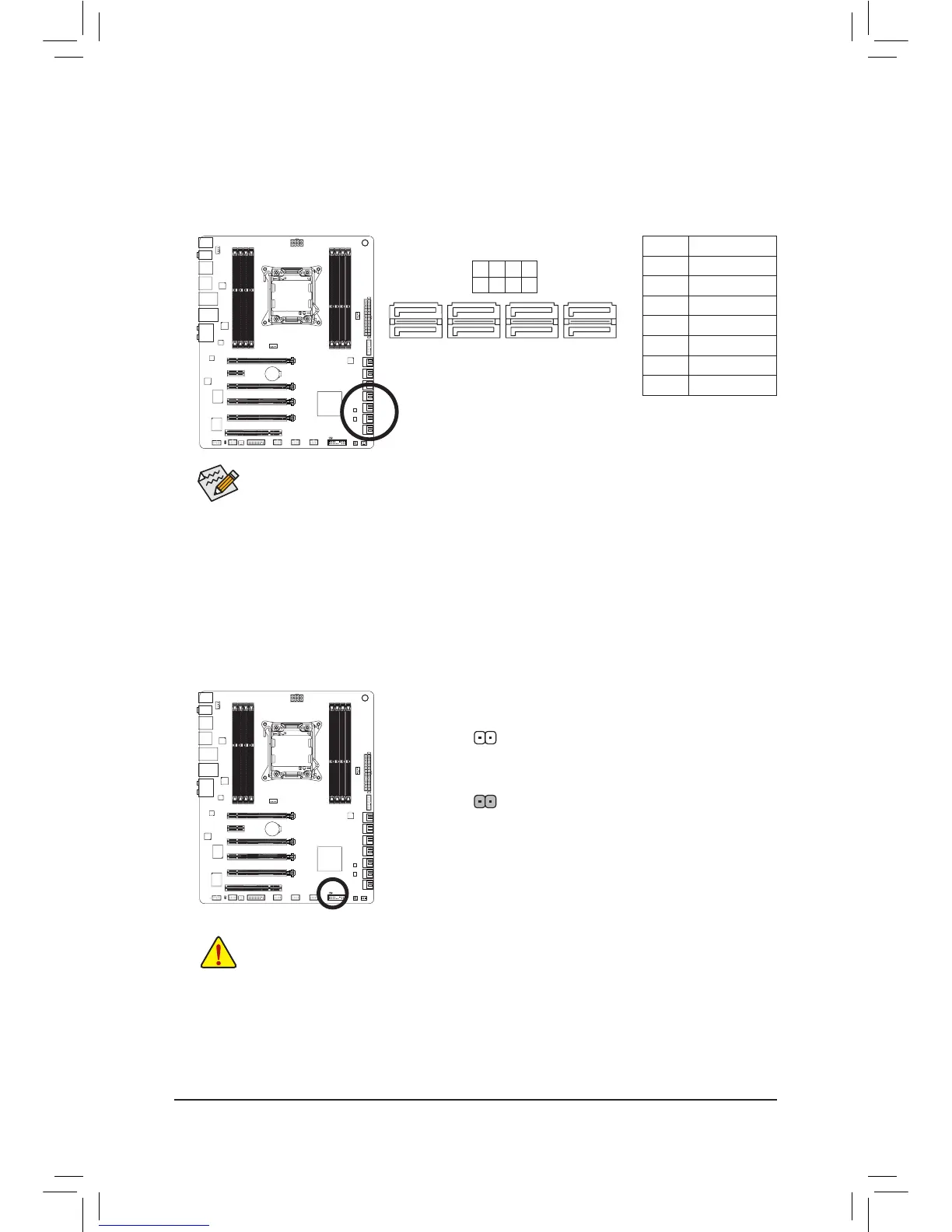

8) SAS20/1/2/3/4/5/6/7(SAS3Gb/sConnectors,ControlledbyIntelC606Chipset)
The SAS connectors conform to SAS 3Gb/s standard and are compatible with SAS 1.5Gb/s standard. Each
SAS connector supports a single SAS or SATA device. The Intel C606 Chipset supports RAID 0, RAID 1,
and RAID 10. Refer to Chapter 5, "Conguring SAS Hard Drive(s)," for instructions on conguring a RAID
array.
7
7
DEBUG
PORT
G.QBOFM
1
1
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
• A RAID 0 or RAID 1 conguration requires at least two hard drives. If more than two hard drives
are to be used, the total number of hard drives must be an even number.
• A RAID 10 conguration requires four hard drives.
SAS2
7 5 3 1
6 4 2 0
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
9) CLR_CMOS (Clear CMOS Jumper)
Use this jumper to clear the CMOS values (e.g. date information and BIOS congurations) and reset the
CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch
the two pins for a few seconds.
• Always turn off your computer and unplug the power cord from the power outlet before clearing
the CMOS values.
• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or
manually congure the BIOS settings (refer to Chapter 2, "BIOS Setup," for BIOS congurations).
Open: Normal
Short: Clear CMOS Values
