` M.I.T. Current Status
This screen provides information on CPU/memory frequencies/parameters.

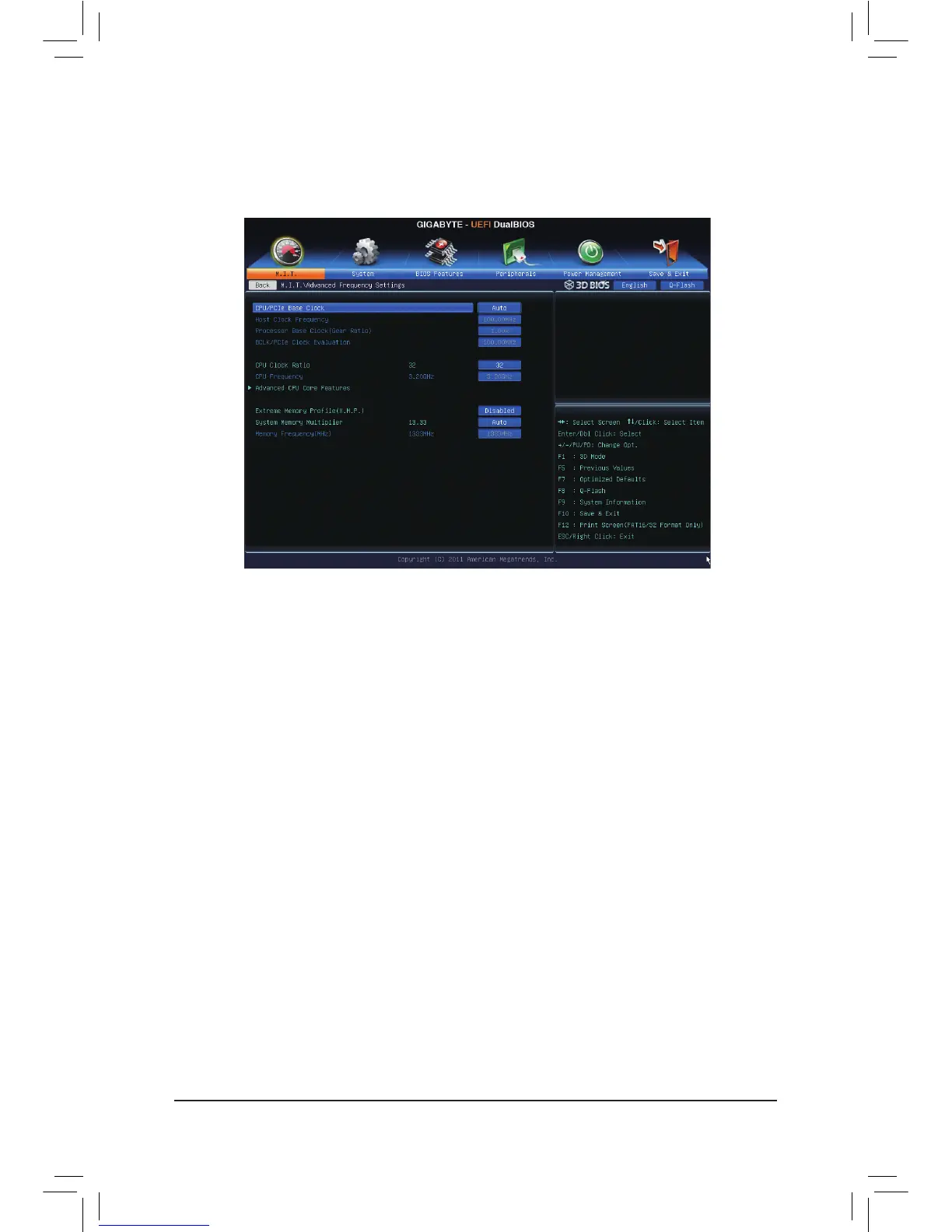

` Advanced Frequency Settings
& CPU/PCIe Base Clock
Allows you to manually set the CPU base clock and PCIe bus frequency in 0.01 MHz increments. (Default:
Auto)
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& Host Clock Frequency
Allows you to manually set the host clock frequency (which controls CPU, PCIe, and memory frequencies)
in 0.01 MHz increments. This item is congurable only when CPU/PCIe Base Clock is set to Manual.
When you change the Processor Base Clock setting, the Memory Frequency (Mhz) setting below will be
changed synchronously.
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& Processor Base Clock
Allows you to congure the Processor Base Clock by multiplying the Host Clock Frequency by several
preset host clock multipliers. This item is congurable only when CPU/PCIe Base Clock is enabled. When
you change the Processor Base Clock setting, the BCLK/PCIe Clock Evaluation setting below will be
changed synchronously.
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& BCLK/PCIe Clock Evaluation
This value is determined by multiplying the Host Clock Frequency value by the Processor Base Clock
value.
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
To Next Page
