BIOS Setup
- 132 -
2-4

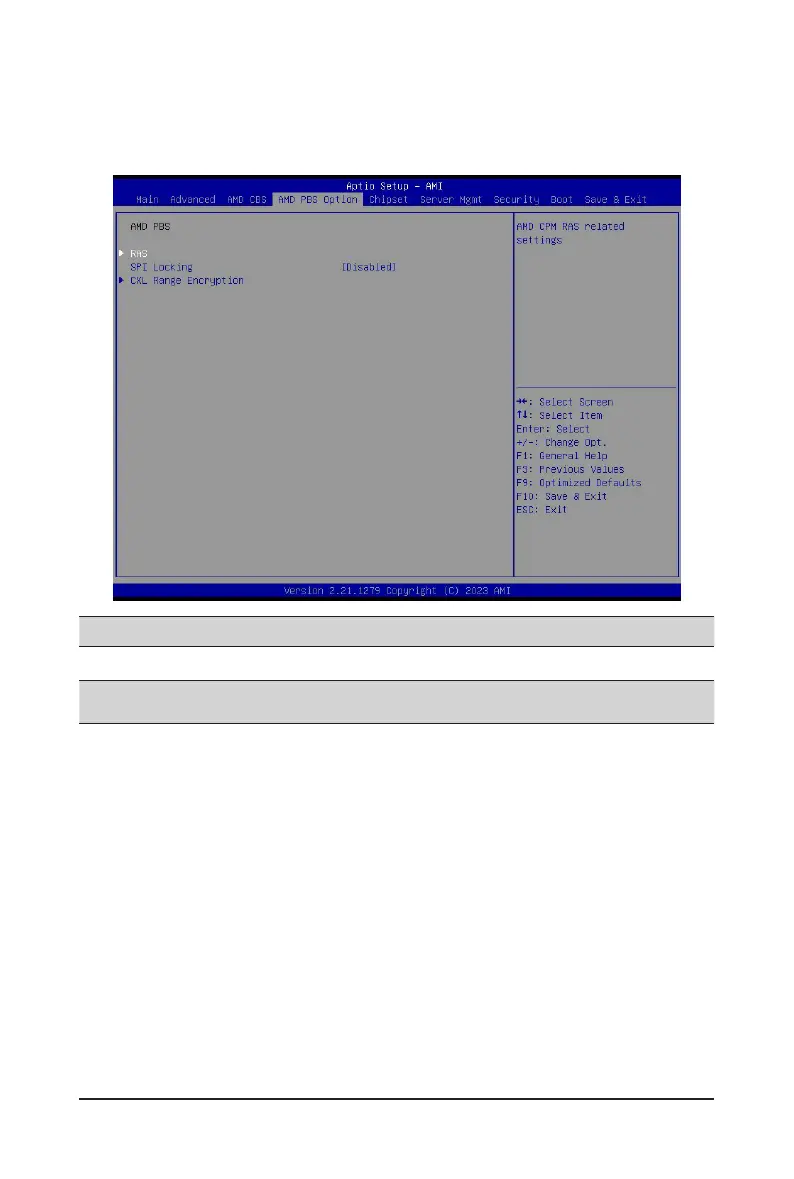

AMD PBS Menu
AMD PBS
Option menu
displays submenu
options for
configuring the
function of
AMD PBS. Select
a
submenu item, then press [Enter] to access the related submenu screen.
Parameter
Description
RAS
Press[Enter]forcongurationofadvanceditems.
SPI Locking
Enable/Disable SPI Locking for protect ROM part.
Options available: Disabled, Enabled. Default setting is
Disabled
.
