Gigabyte MZ73-LM1 User Manual

- 16 -
Hardware Installation

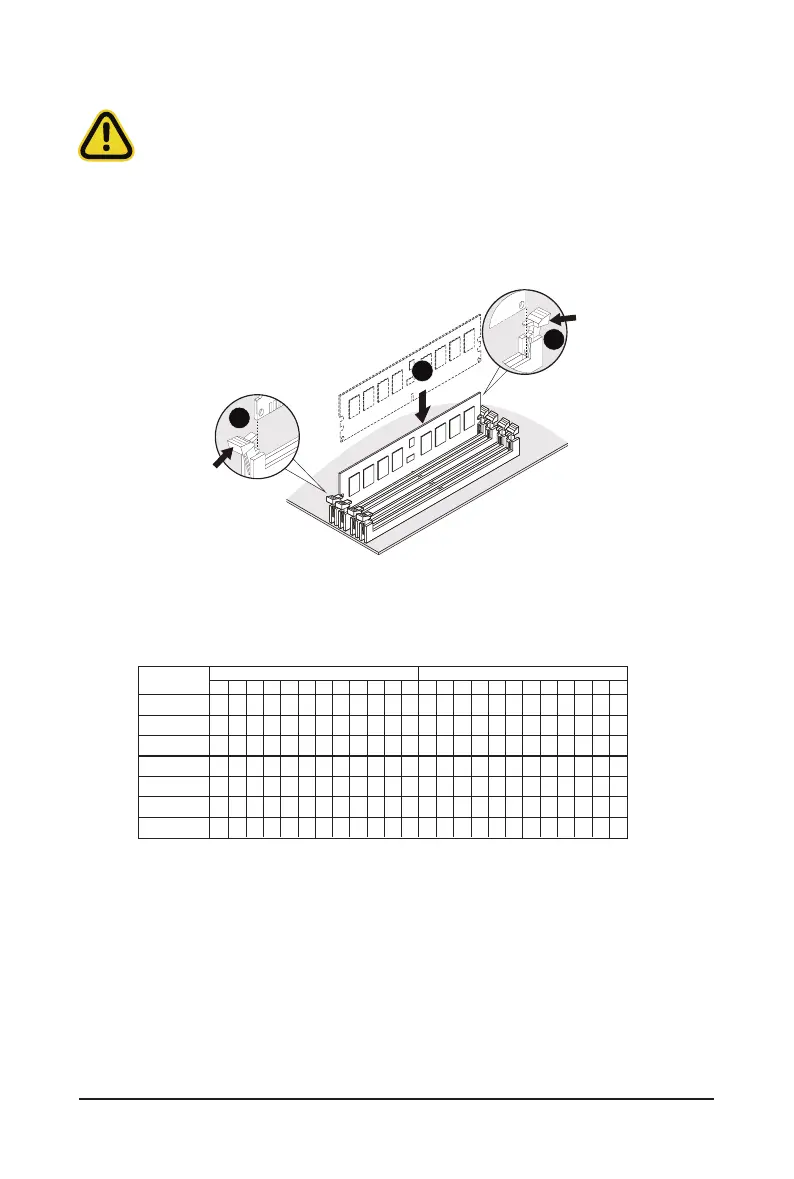

1-4-2 Installing and Removing the Memory Module
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR5 DIMMs on to this motherboard.
Follow these instructions to install a DIMM module:
1. Insert the DIMM memory module vertically into the DIMM slot and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
1
2
2
1-4-3 Processor and Memory Module Matrix Table
4 DIMM
Memory Q’ty
for each CPU
CPU1
1 DIMM
2 DIMM
6 DIMM
8 DIMM
12 DIMM
R0 M0P0 O0 S0 T0Q0 N0 U0 V0 W0 X0
10 DIMM
CPU0
F0
A0
D0 C0
G0
H0
E0 B0
I0
J0
K0
L0
V
V
V
V
V
V V
VV
V
V
V
V
V
V
V
VV V
VV V VV V
VV VV V VV V
V V VV VV V VV V
V
V
V
V
V
V V
VV
V
V
V
V
V
V
V
VV V
VV V VV V
VV VV V VV V
V V VV VV V VV V
