- 27 -
Hardware Installation
Read the following guidelines before connecting external devices:
•
First make sure your devices are compliant with the connectors you wish to connect.
•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•
After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

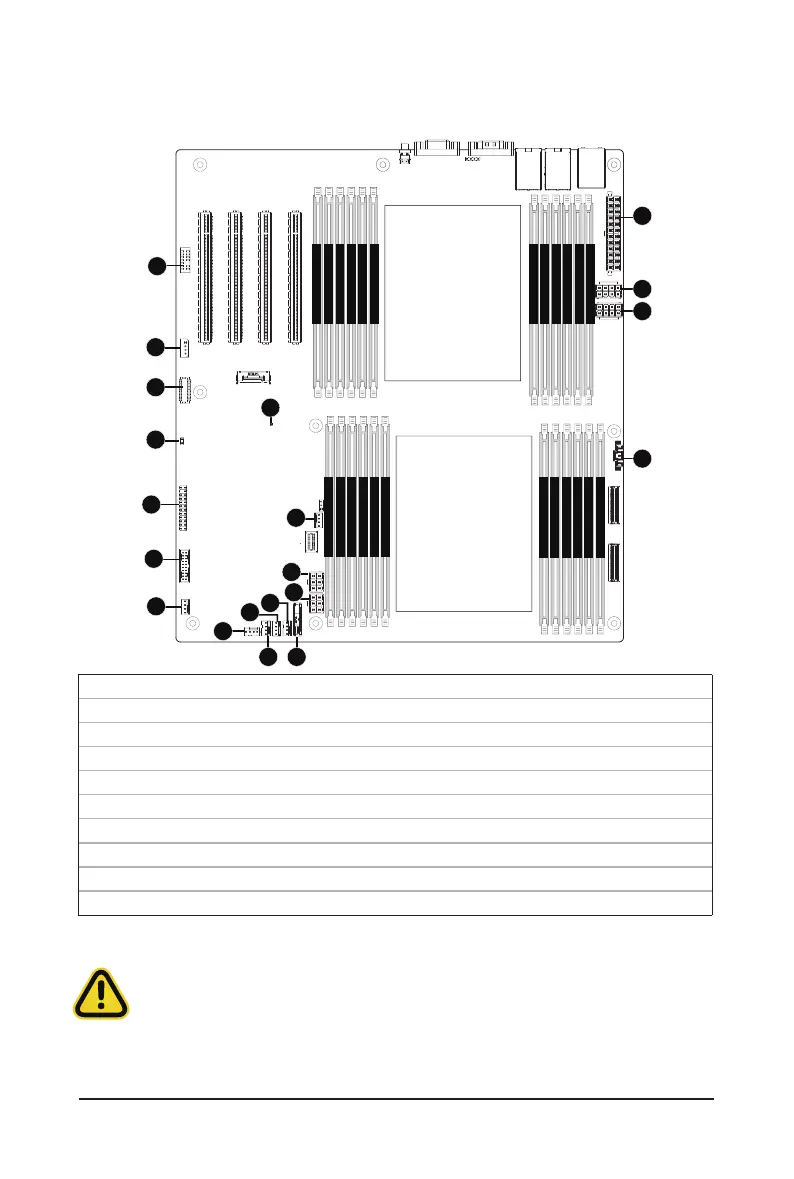

1) ATX1 11) SYS_FAN3
2) P12V_AUX1 12) SYS_FAN2
3) P12V_AUX2 13) SYS_FAN1
4) PMBUS 14) F_USB3
5) CPU0_FAN 15) FP_1
6) P12V_PCIE1 16) BP_1
7) P12V_PCIE2 17) IPMB
8) BAT 18) SPI_TPM
9) CPU1_FAN 19) Case Open Intrusion Alert Header
10) SYS_FAN4 20) BMC Firmware Readiness LED
1
2
3
4
9
5
8
6
12
13
14
15
16
18
17
10
11
7
19
20
CPU1
CPU0
DIMM_P1_Q1 DIMM_P1_N0 DIMM_P1_M0 DIMM_P1_P0 DIMM_P1_O0 DIMM_P1_R0
DIMM_P1_T0 DIMM_P1_W0 DIMM_P1_X0 DIMM_P1_U0 DIMM_P1_V0 DIMM_P1_S0
DIMM_P0_B0 DIMM_P0_E0 DIMM_P0_F0 DIMM_P0_C0 DIMM_P0_D0 DIMM_P0_A0 DIMM_P0_K0 DIMM_P0_H0 DIMM_P0_G0 DIMM_P0_J0 DIMM_P0_I0 DIMM_P0_L 0
1-7-2 MZ73-LM1
