BIOS Setup
- 87 -

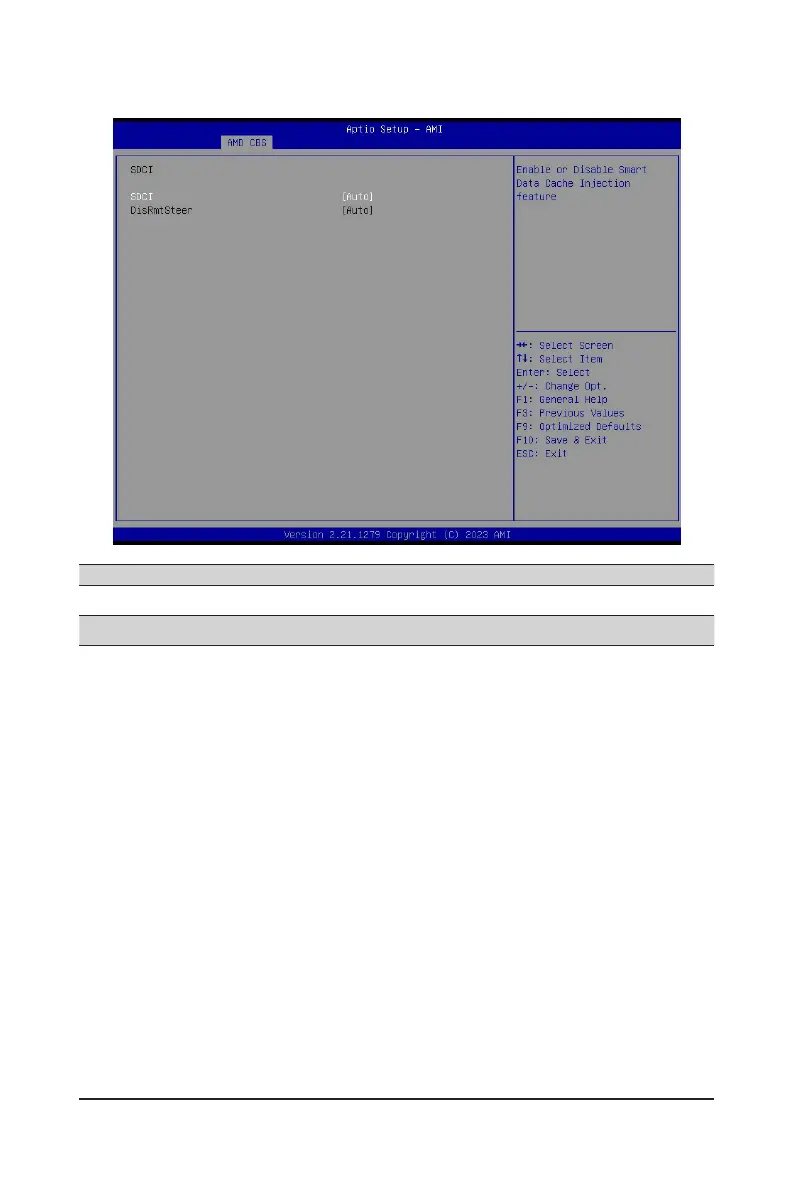

2-3-2-4
SDCI
Parameter
Description
SDCI
(Note)
Options available: Disabled, Enabled,
Auto. Default setting is
Auto
.
DisRmSteer
Options available: Disabled, Enabled,
Auto. Default setting is
Auto
.
(Note)
Advanceditemspromptwhenthisitemisdened.
86
88
Table of Contents
default chapter
3
Table of Contents
3
Motherboard Layout
5
Mz73-Lm0
5
Mz73-Lm1
7
Block Diagram
9
Mz73-Lm0
9
Mz73-Lm1
9
Chapter 1 Hardware Installation
10
Installation Precautions
10
Product Specifications
11
Installing and Removing the CPU and Heat Sink
14
Installing and Removing Memory
15
12-Channel Memory Configuration
15
Installing and Removing the Memory Module
16
Processor and Memory Module Matrix Table
16
Memory Population Table
17
Installing and Removing the M.2 SSD Module
18
Back Panel Connectors
19
Internal Connectors
20
Mz73-Lm0
20
Mz73-Lm1
27
Jumper Settings
34
Mz73-Lm0
34
Mz73-Lm1
35
Chapter 2 BIOS Setup
36
The Main Menu
38
Advanced Menu
41
Trusted Computing
43
PSP Firmware Versions
44
Legacy Video Select
45
Ast2600 Super Io Configuration
46
S5 RTC Wake Settings
48
Serial Port Console Redirection
49
Cpu Configuration
53
PCI Subsystem Settings
54
Usb Configuration
56
Network Stack Configuration
58
Nvme Configuration
59
Sata Configuration
60
Graphic Output Configuration
61
Amd Mem Configuration Status
62
Tls Auth Configuration
63
Ram Disk Configuration
64
Iscsi Configuration
65
Broadcom BCM57416 10GBASE-T Network Connection
66
Vlan Configuration
72
Mac Ipv4 Network Configuration
73
Mac Ipv6 Network Configuration
74
AMD CBS Menu
75
CPU Common Options
77
DF Common Options
82
UMC Common Options
88
NBIO Common Options
108
FCH Common Options
118
NTB Common Options
127
SOC Miscellaneous Control
128
Workload Tuning
130
CXL Common Options
131
AMD PBS Menu
132
Ras
133
Chipset Setup Menu
135
North Bridge
136
Fabric Resource
138
Server Management Menu
139
System Event Log
141
View FRU Information
142
Bmc Network Configuration
143
Ipv6 Bmc Network Configuration
144
Security Menu
145
Secure Boot
146
Boot Menu
148
Save & Exit Menu
150
BIOS Recovery
151
BIOS POST Beep Code (AMI Standard)
152
PEI Beep Codes
152
DXE Beep Codes
152
