Mini-ITX Motherboard mITX-Q47EA (MQ47EAI-SI)
37

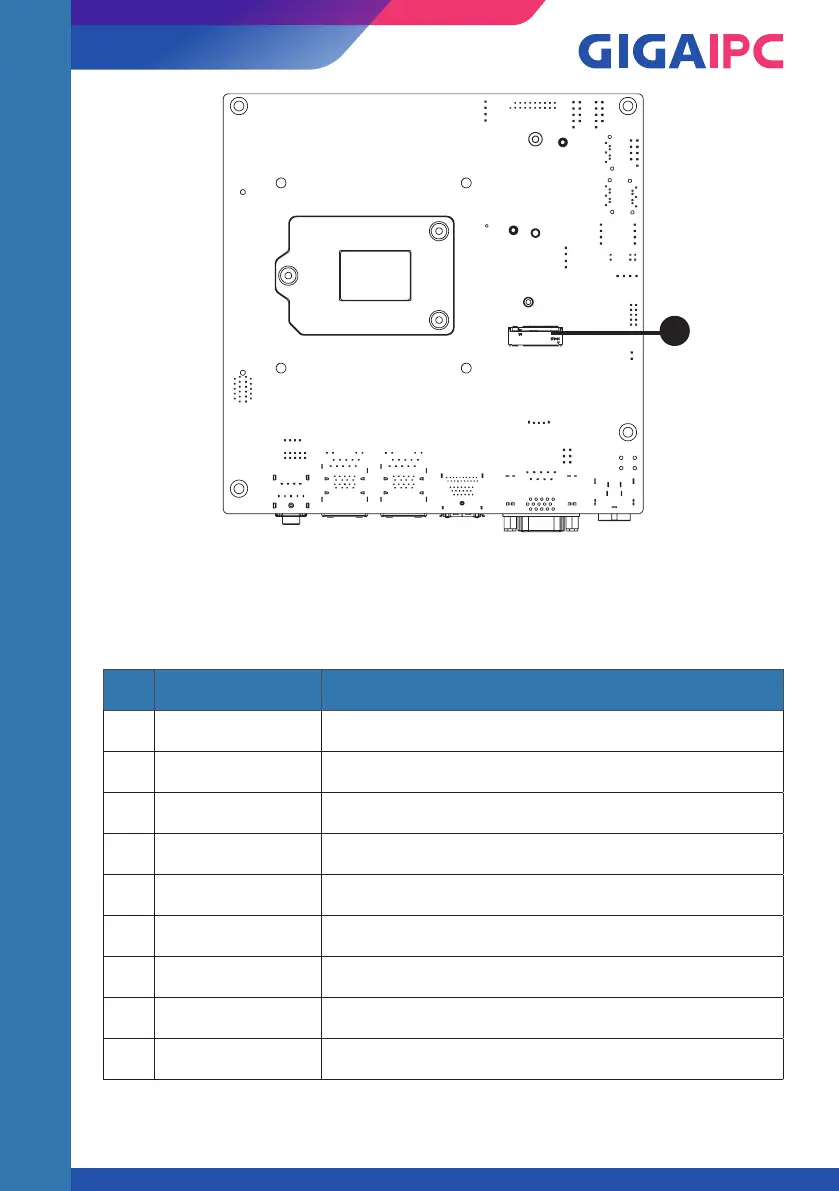

No Code Description
1 DC_IN DC In Jack 4 pin Din
2 DC_IN2 ATX 2x2 Pin Power Connector
3 VGA VGA Port
4 COM1
COM1 RS232/422/485 & 5V/12V/RI Port
5 HDMI 2 HDMI 2.0 Connector
6 DP
Display Port Connector
7 USB31 USB3.2 GEN2x1 Type A Connector x 1 (Red)
8 USB3 USB3.2 GEN1x1 Type A Connector x 3 (Blue)
9 LAN1, LAN2 GbE Eternet LAN port x 2
