Page 14 MDE-5412C Passport® EDGE Installation and Start-up Manual · February 2019
Passport EDGE Hardware Setup
If
the Passport Edge system is replacing an existing competitive POS system(s), refer to the site
survey to understand the requirement for an existing Dispensers and D-Box so that they
communicate to the Passport EDGE, once the installation completes.
Use at least two (four is recommended) #8 X
1-inch wood screws to mount the PS65
(see Figure 5) on the left and right side of the unit, using
the keyholes on the PX65. Ensure that
you mount the PS65 in a position that allows
the cashier and
manager to view the Light
Emitting Diodes [LEDs (see Figure 6)] and prevent liquid from entering the ports on the unit.

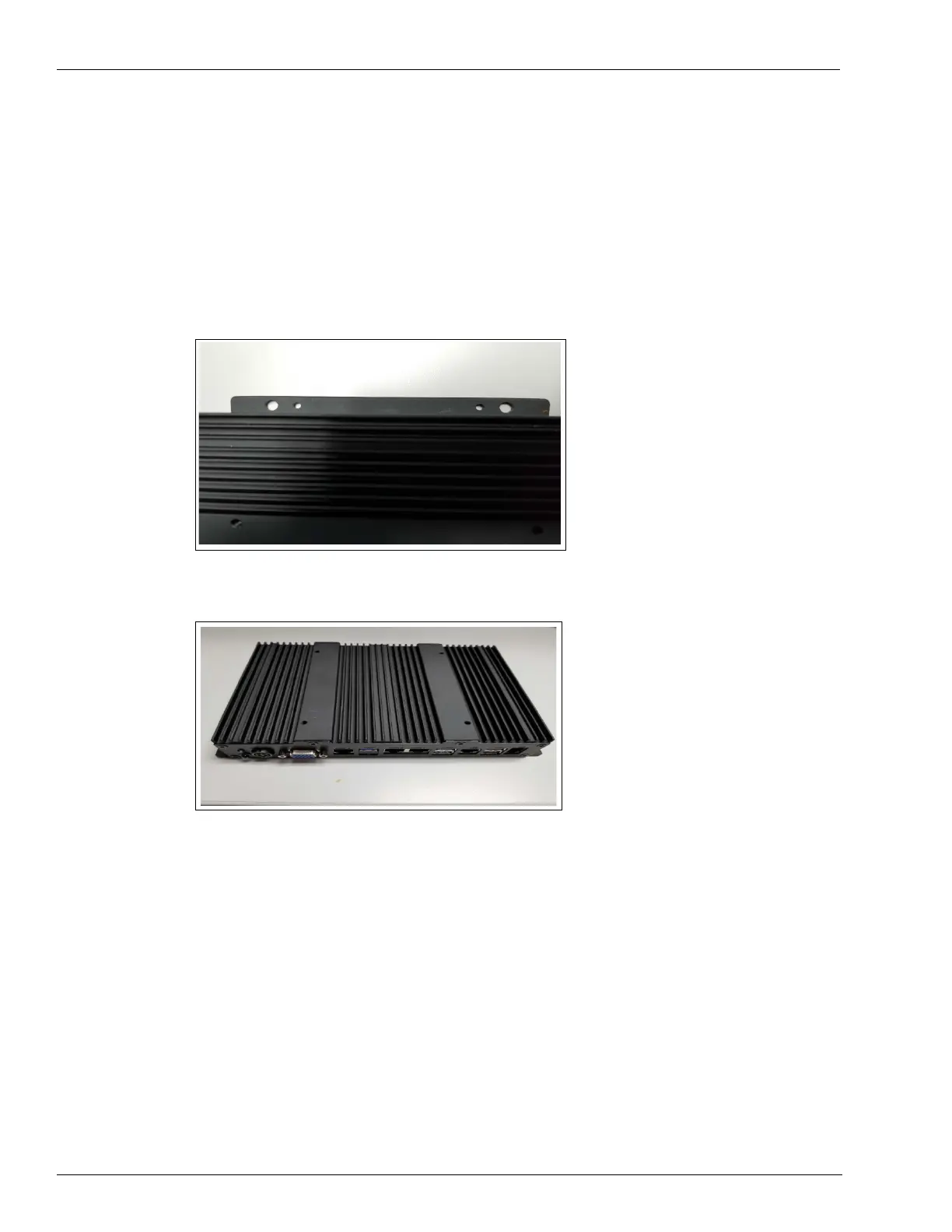

Figure 5: Mounting PS65
Figure 6: Mounting PS65 - 1
