VeriFone® MX915 PIN Pad
IP Based Receipt Printer
The Passport Edge system uses the Epson
®
Receipt Printer Model TM-M30 (PA04300043). The
Receipt Printer connects to the SZR using a CAT5 cable (see Figure 10).
30T-8- FRONT-EDGE-BASIC
Port V-LAN Segment DEVICE
1 Switch (Trunk) I MG
2 EDH EDH
3 POS TPOS (Server)
4 Auxiliary Tablet 1
5 PayDev PIN Pad 1
6 Auxiliary Receipt Printer 1
7 Auxiliary Applause
8 PayDev Dispensers
34T-16-FRONT-EDGE-BASIC
Port V-LAN Segment DEVICE
1 Switch (Trunk) In MG
2 EDH EDH
3 POS TPOS (Server)
4 Auxiliary Tablet 1
5 POS PIN Pad 1
6 Auxiliary Receipt Printer 1
7 Not Used Not Used
8 Auxiliary Tablet 2
9 PayDev PIN Pad 2
10 Auxiliary Receipt Printer 2
11 Auxiliary Applause
12 PayDev Dispensers
13 Not Used Not Used
14 Not Used Not Used
15 Not Used Not Used
16 Not Used Not Used
Example of the 8-port switch

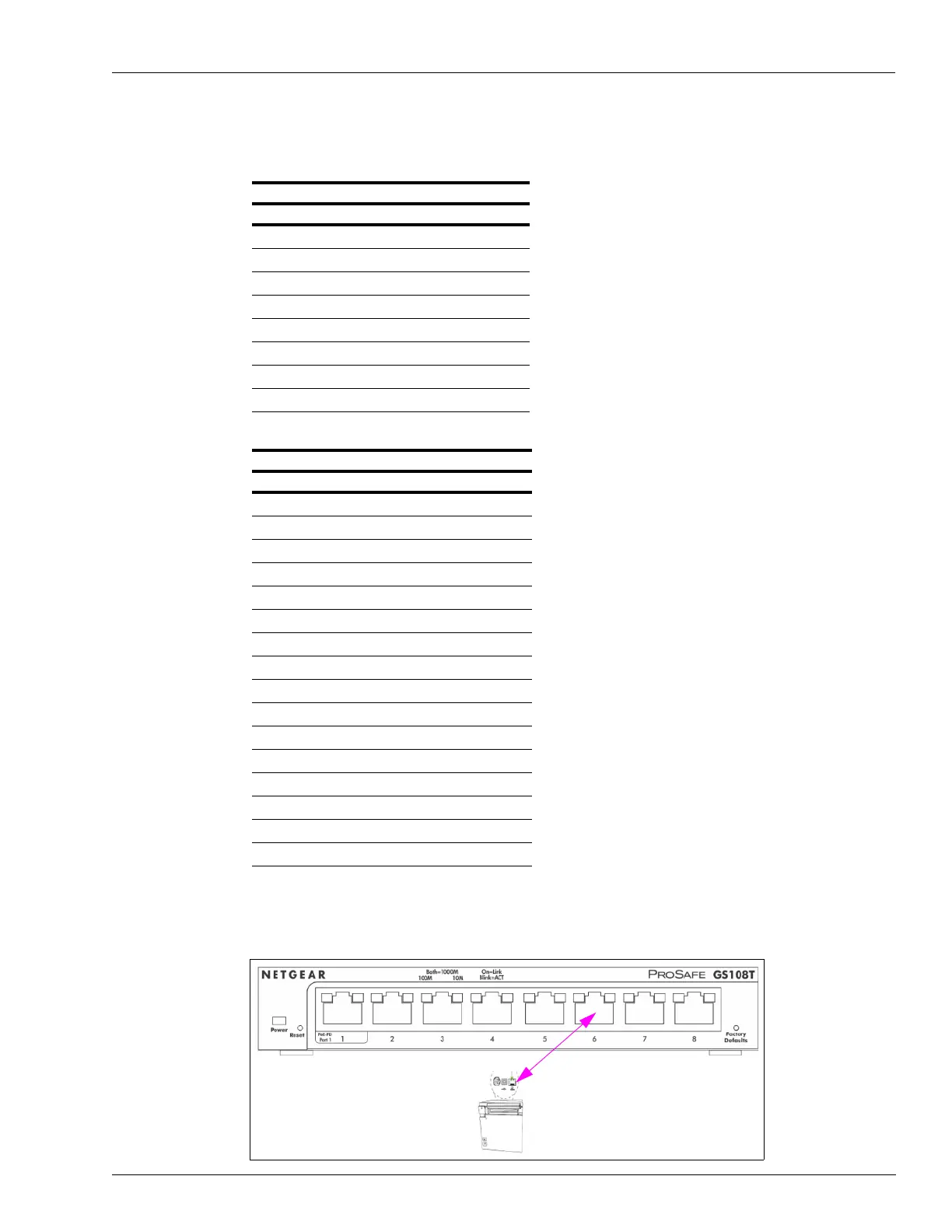

Figure 10: Connecting Receipt Printer to the SZR
