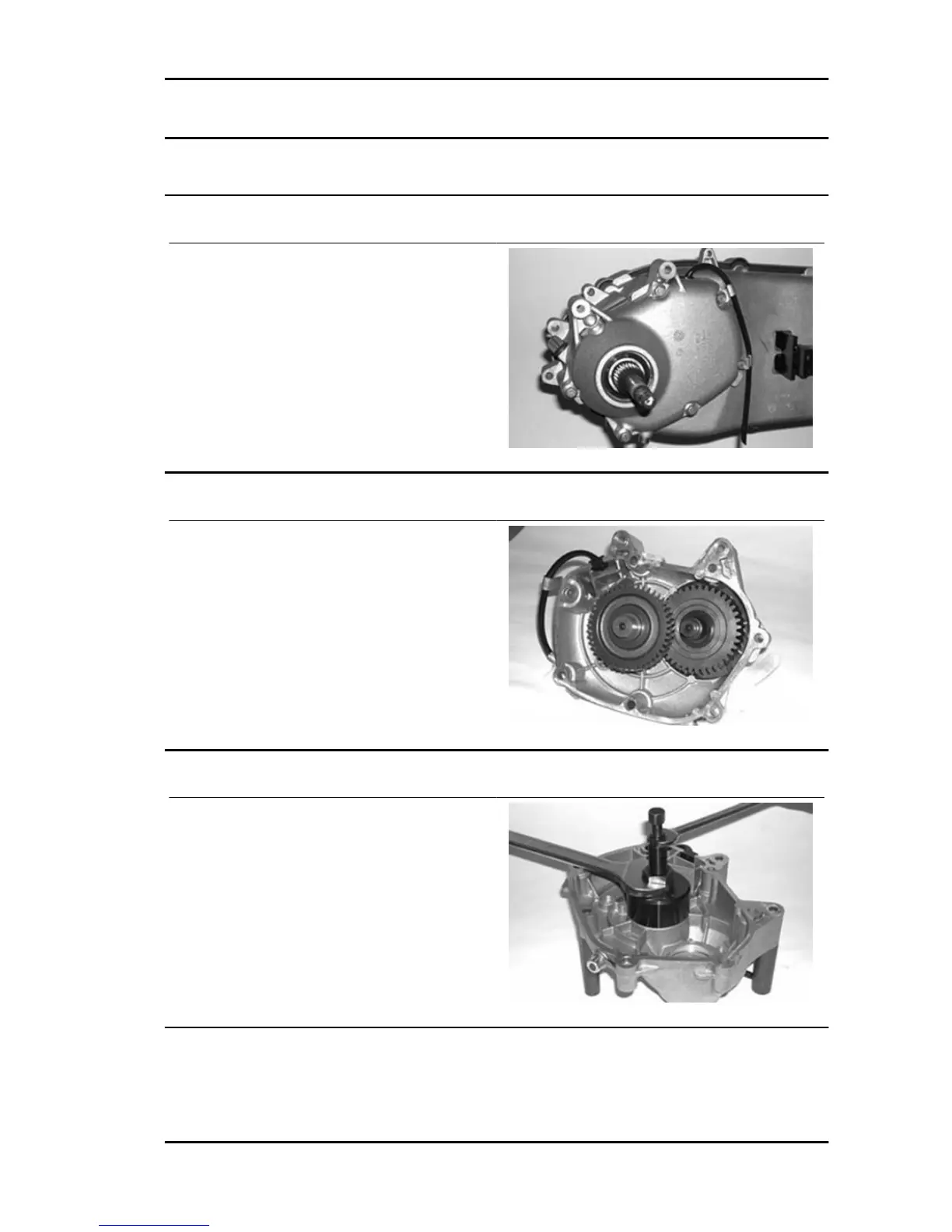

End gear
Removing the hub cover
- Drain the rear hub oil through the oil drainage cap
located under the engine.
- Drain the rear hub oil through the oil drainage cap
located under the engine.
-Remove the 7 fastening screws. Remove the hub
cover and the relevant gasket.
Removing the wheel axle
- Remove the countershaft.
- Remove the wheel axis complete with gear.
Removing the hub bearings
- Support the hub cover using the column kit.
- Pull out the bearing using the special tool.
Specific tooling
020476Y Stud bolt set
001467Y006 Pliers to extract 20 mm bearings
001467Y007 Driver for OD 54-mm bearings
Nexus 500 euro 3 Engine
ENG - 101
