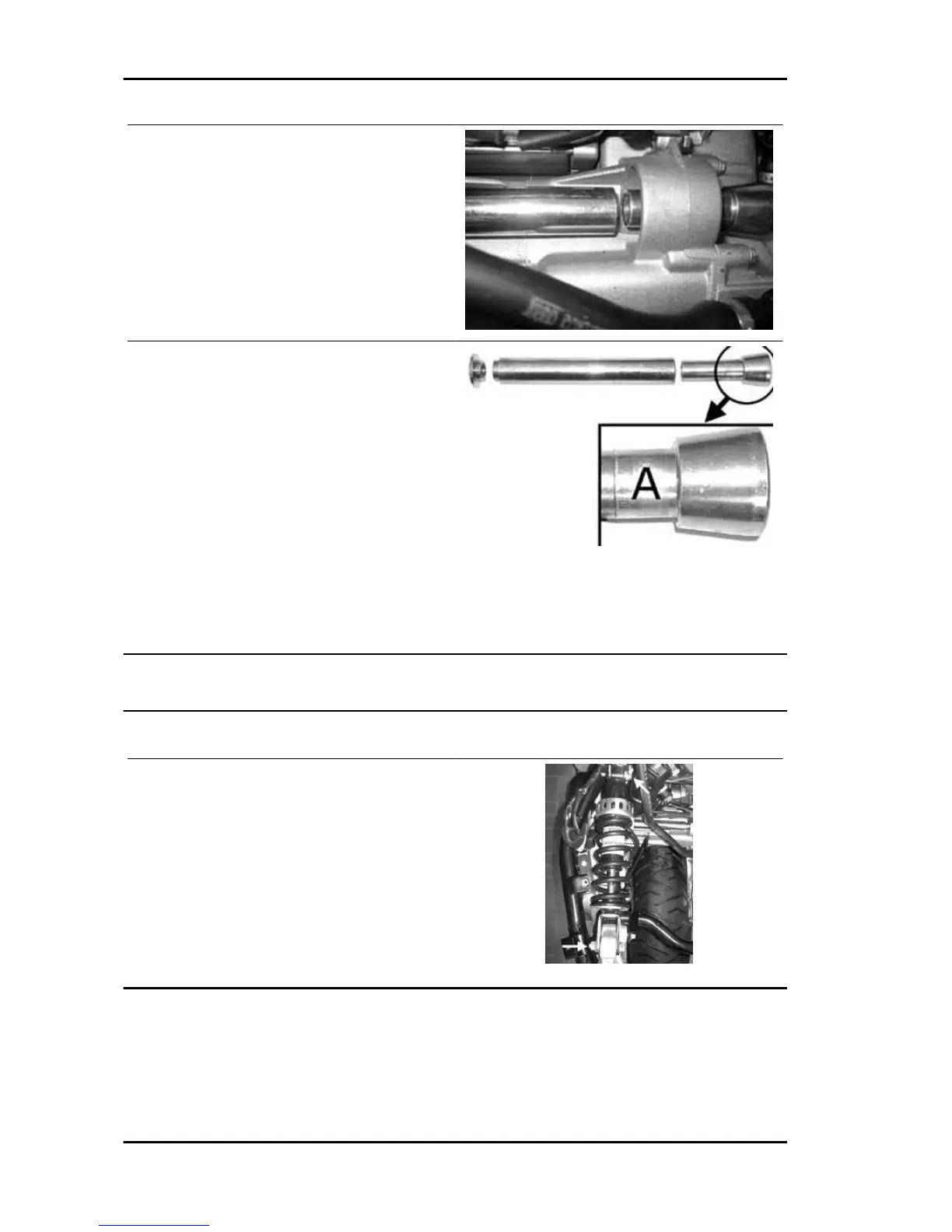

- Remove the central and the right spacer.
- To refit, follow the removal operations but in re-
verse order, being careful to observe the original
torque and to lubricate the sliding area «A» of the
right spacer on the engine bearing.
Locking torques (N*m)
Engine - chassis fixing pin 100 - 120
Two types of engine fixing pins, without distinction, have been fitted on the scooter:
- 17-mm flanged-head pin.
- 22-mm head pin and washer.
Shock absorbers
Removal
- To remove the rear shock absorber, remove the
two retaining screws shown in the figure.
Refitting
- To refit perform the operation in reverse order carefully respecting the locking torques.
Locking torques (N*m)
Rear shock absorber retainer to the chassis 38 - 46
Suspensions Nexus 500 euro 3
SUSP - 306
