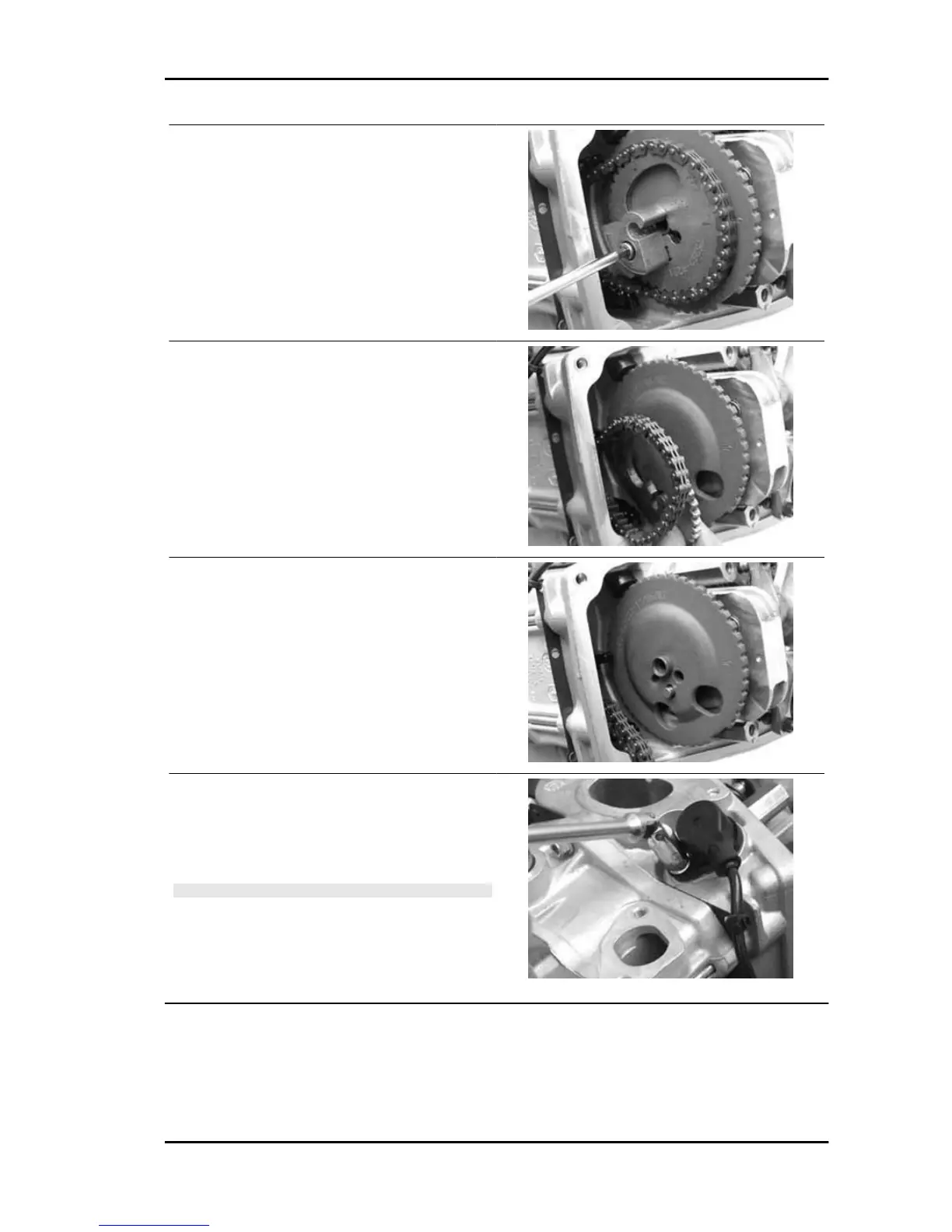

Remove the inside hexagon screw and the coun-
terweight as shown in the figure.
- Remove the timing belt rim from the camshaft.
- Remove the timing belt rim.
- Remove the tone wheel.
- Remove the engine revolution timing sensor and
relevant O-ring by loosening the fastening screw
and removing the mounting band from the special
hole obtained on the head gasket.
N.B.
TO CHECK THIS COMPONENT, SEE THE INJECTION
CHAPTER.
Nexus 500 euro 3 Engine
ENG - 135
