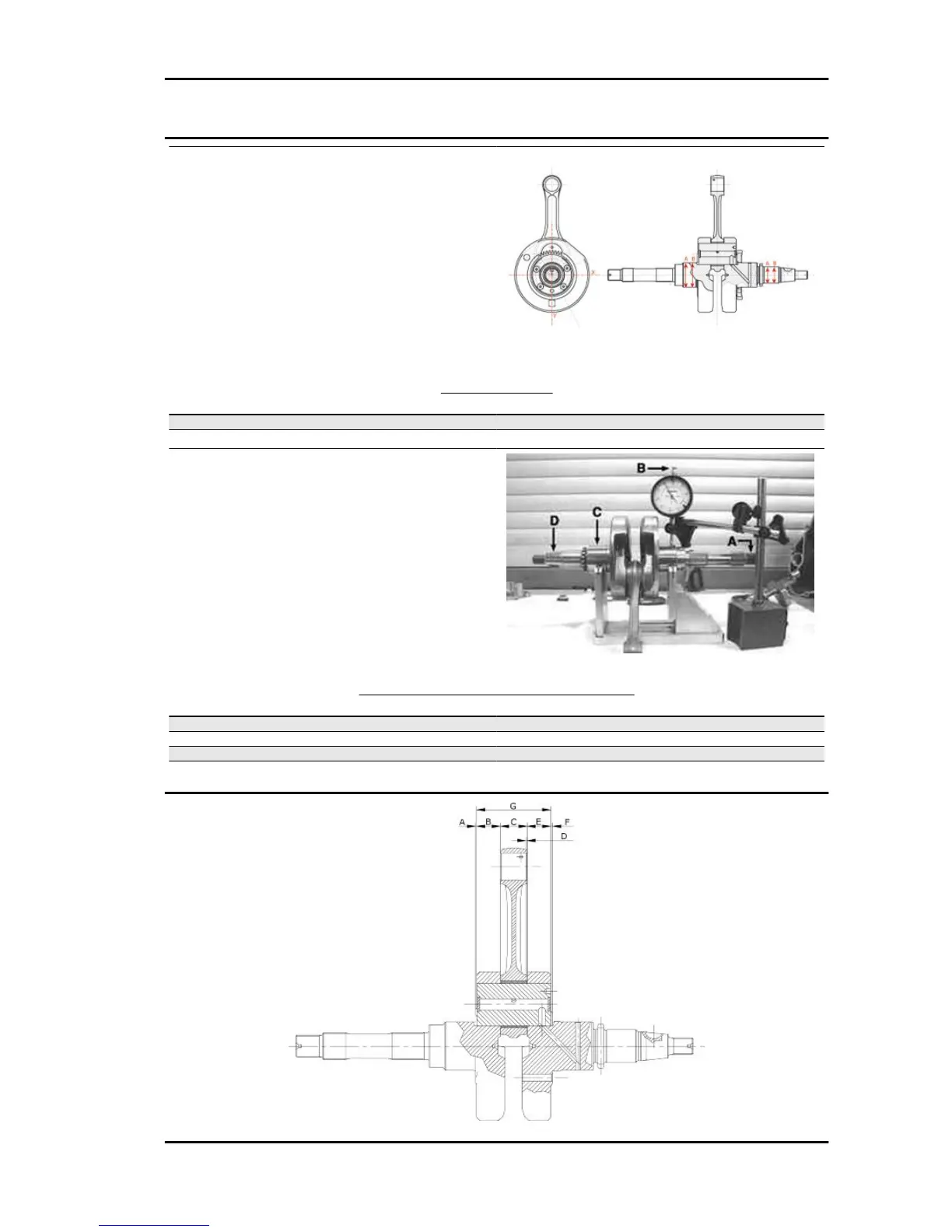

Diameter of crankshaft bearings.
Measure the capacity on both axes x-y.
CRANKSHAFT
Specification Desc./Quantity
Cat. 1 Standard diameter: 40.010 ÷ 40.016
Cat. 2 Standard diameter: 40.016 ÷ 40.022
Crankshaft alignment
Specific tooling
020335Y Magnetic support for dial gauge
MAX. ADMISSIBLE DISPLACEMENT
Specification
Desc./Quantity
A = 0.15 mm
B = 0.010 mm
C = 0.010 mm
D = 0.10 mm
Nexus 500 euro 3 Characteristics
CHAR - 15
