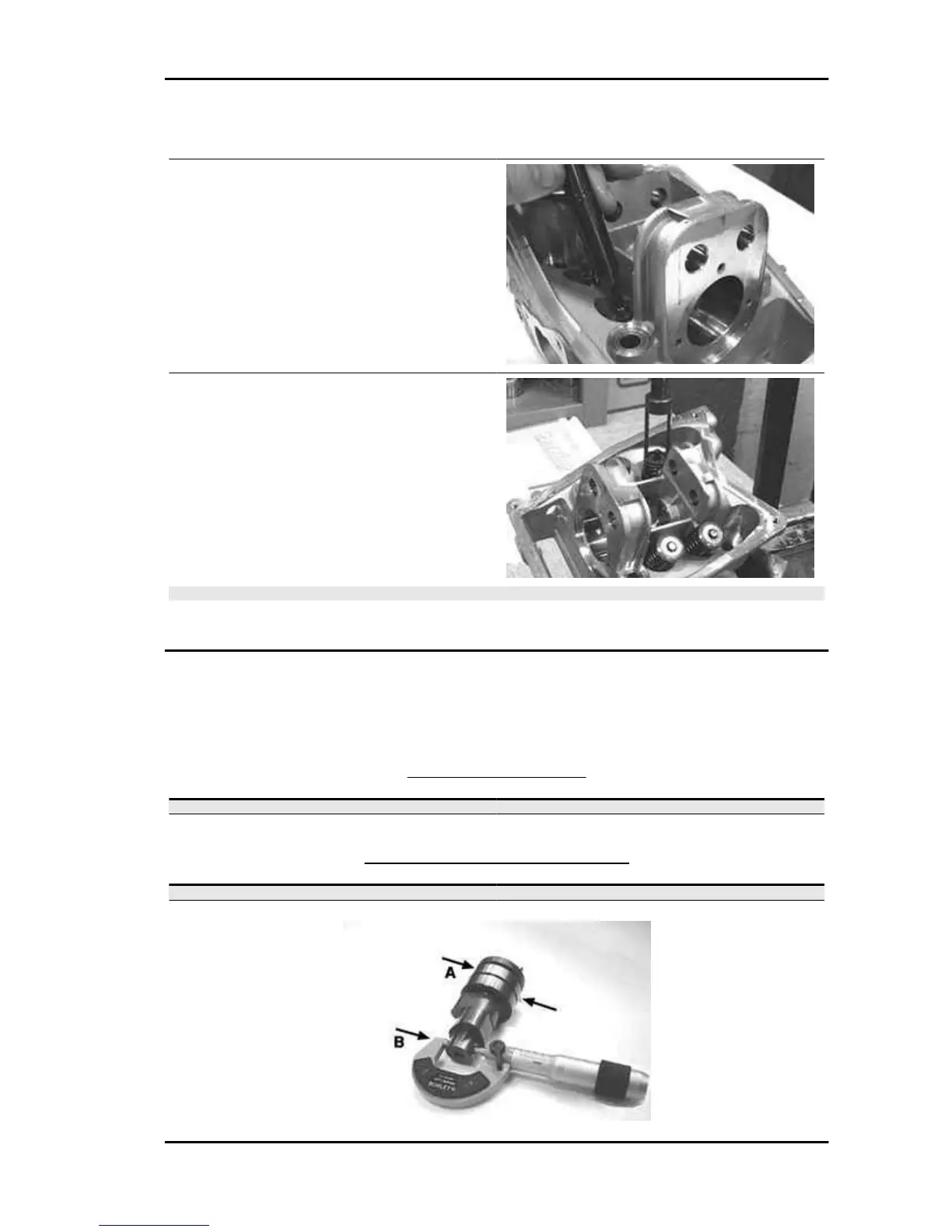

Refitting the valves
- Place the valve spring support washers on the
head.
- Alternately insert the 4 oil guards using the spe-
cial tool.
- Lubricate the oil guards and the valve guides.
Specific tooling
020306Y Punch for assembling valve seal
rings
- Fit the valves, the springs and the caps. Using
the appropriate tool with adapter, compress the
springs and insert the cotters in their seats.
Specific tooling
020382Y Valve cotters equipped with part 012
removal tool
020382Y012 bush (valve removing tool)
N.B.
DO NOT CHANGE THE VALVE FITTING POSITION. FIT THE VALVE SPRINGS WITH THE REF-
ERENCE COLOUR ON COTTER SIDE (TURNS WITH GREATER PITCH).
Inspecting the cam shaft
- Check that the camshaft bearings exhibit no scores or abnormal wear.
- Using a micrometer, measure the camshaft bearings.
STANDARD DIAMETER
Specification
Desc./Quantity
Bearing A Ø: 42 - 0.060 -0.085 mm
Bearing B diameter: 20 - 0.020 -0.041 mm
MINIMUM ADMISSIBLE DIAMETER
Specification
Desc./Quantity
Bearing A Ø: 41.910 mm
Bearing B diameter: 19.940 mm
Nexus 500 euro 3 Engine
ENG - 151
