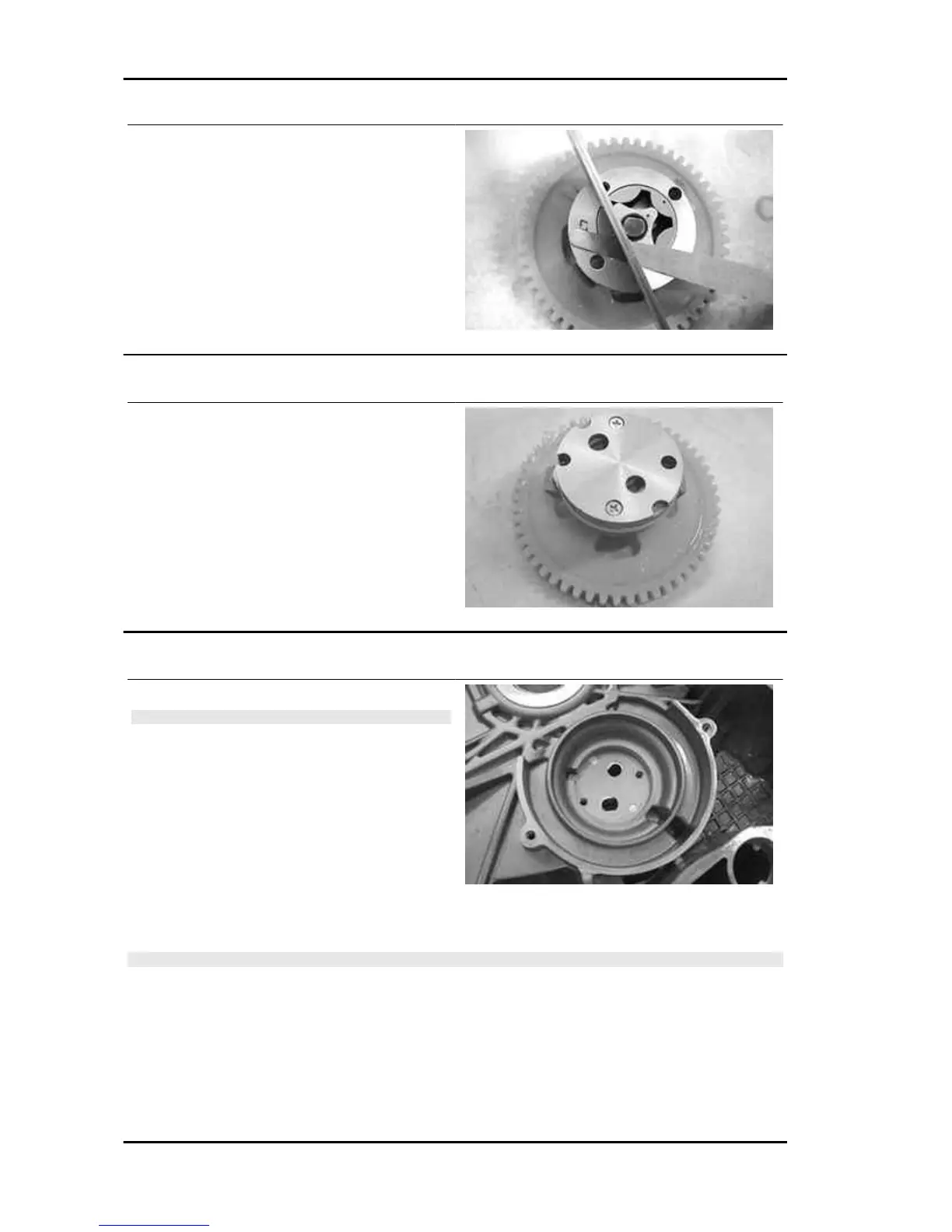

- Check the rotor axial clearance using a rectified
bar as reference plane, as shown in the figure.
Characteristic
Limit values admitted:
0.1 mm
Inspection
- For tests on the oil pump, see the "Lubrication"
chapter.
Refitting
- Make sure the gasket is in the correct position.
N.B.
THE TOOTH OF THE GASKET MUST BE IN ITS SEAT.
- Insert the oil pump with gear
- Insert the 2 retaining screws through the slots on the gear and tighten to the prescribed torque.
N.B.
THE ASSEMBLY POSITION OF THE PUMP IS FIXED BY INSTALLATION OF THE SCREWS.
Engine Nexus 500 euro 3
ENG - 188
