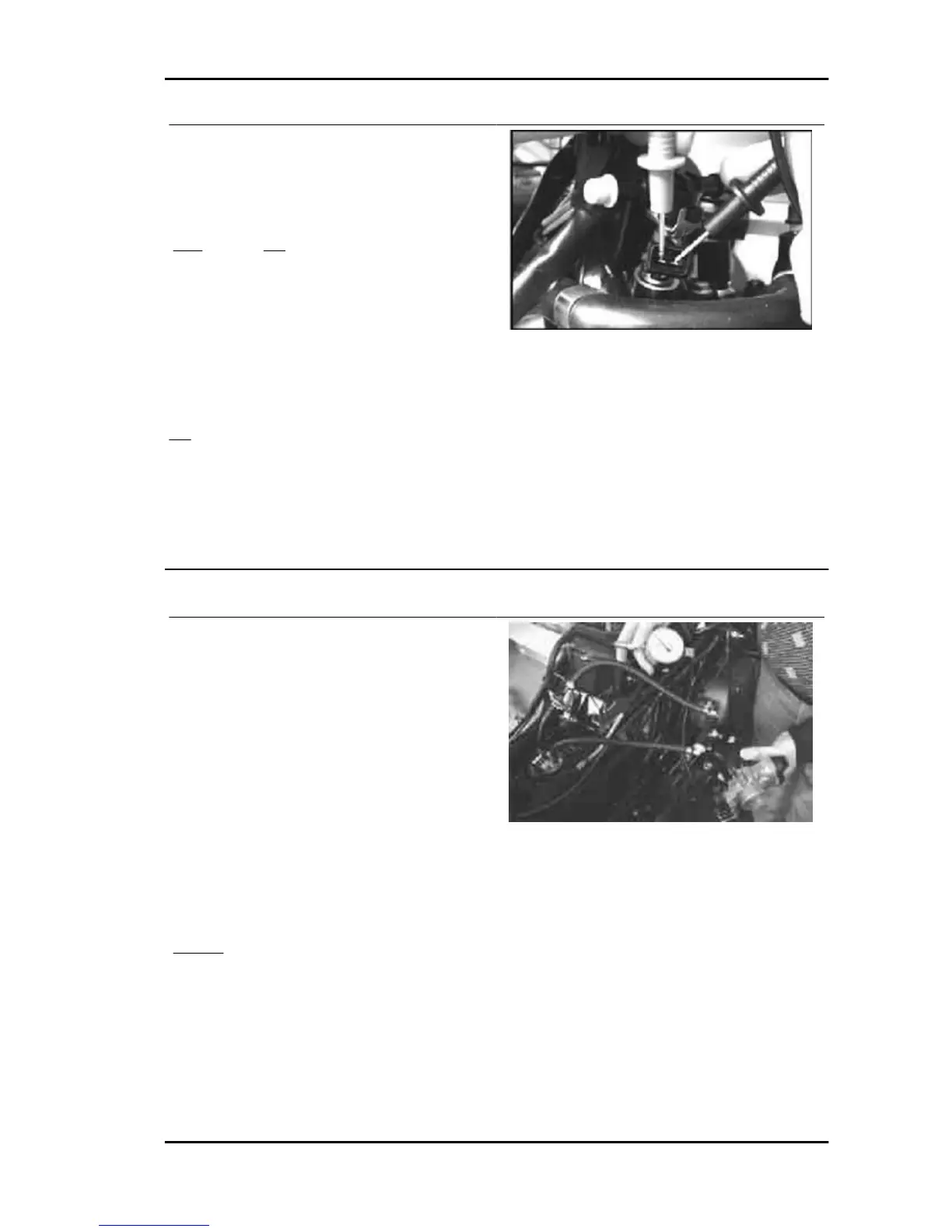

18 - No continuity. Disconnect the connector and
repeat the resistive check directly at the injector
terminals.
Resistance = 14.5 Ω ± 2%
YES go to 21 NO go to 22
19 - Check the earth insulation of the injector negative line. Disconnected control unit and injector
connectors.
13 - 23 = Ω infinity
NO go to 20
20 - Repair or replace the cable harness.
21 - Check the continuity between the injector power supply connector (red - yellow) and pin 13. Restore
the continuity, if required, or replace the wiring
22 - Replace the injector.
Inspecting the injector hydraulics
To check the injector it is advisable to remove the
intake manifold along with throttle body and injec-
tor.
The injector should be removed from the manifold
only if necessary.
For these operations, see the "thermal group and
timing system" chapter
1 - Connect the diagnostic tester. Use the socket
in the under-saddle compartment.
Install the fuel pressure check kit special tool.
In this case, the injector can be connected directly
to the tool quick couplings.
AHEAD go to 2
Specific tooling
020460Y Scooter diagnosis and tester
020480Y Petrol pressure check set
Nexus 500 euro 3 Injection
INJEC - 237
