YES go to 15 NO go to 14
13 - Repair or replace the faulty system. Repeat the check with the menu on "ACTIVE DIAGNOSIS".
14 - Repeat the earth insulation check in the two sections. Repair or replace the wiring. Repeat the
check with the menu on "ACTIVE DIAGNOSIS" H.V. coil control simulation. Delete the errors stored in
memory.

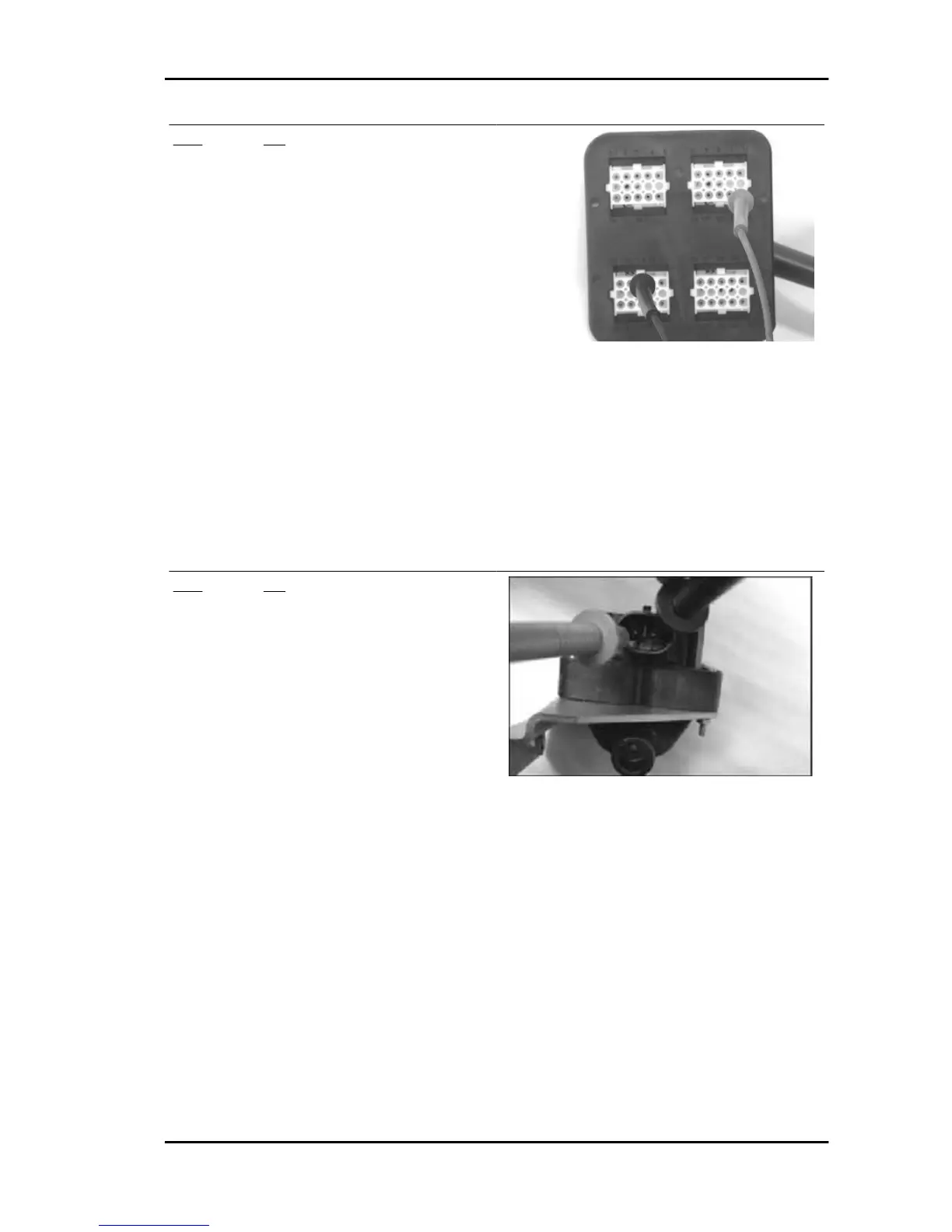

15 - Check the continuity of the H.V. coil primary. See figure.
Electric characteristic
Primary resistance =
0.5 ± 8%
YES go to 16 NO go to 19
16 - Check the earth insulation of the primary circuit
Measure between one of the primary terminals and earth.
Electric characteristic
Primary-earth =
Ω infinite (>1MΩ)
Nexus 500 euro 3 Injection
INJEC - 257
