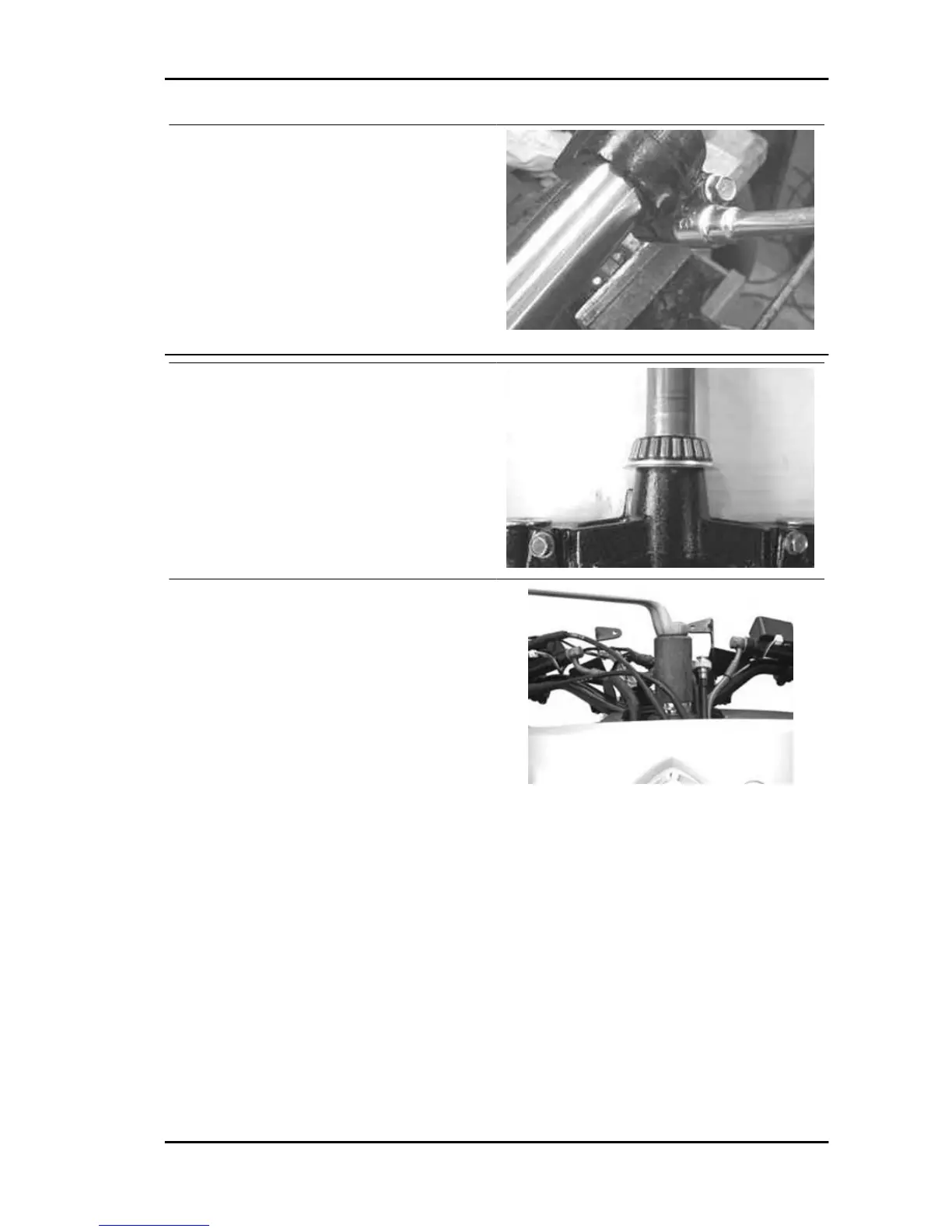

- Loosen the fork clamp screws and move the stem
closing cap in abutment with the clamp.
- Tighten the clamp screws to the prescribed tor-
que.
Locking torques (N*m)
Fork clamp screws 20 ÷ 25
- Grease the tapered bearing using the specified
product.
Recommended products
AGIP GREASE PV2 Grease for the steering
bearings, pin seats and swinging arm
White anhydrous-calcium based grease to protect
roller bearings; temperature range between -20 C
and +120 C; NLGI 2; ISO-L-XBCIB2.
- Insert the fork into the headstock.
- Insert the tapered bearing after applying the
specified product.
Recommended products
AGIP GREASE PV2 Grease for the steering
bearings, pin seats and swinging arm
White anhydrous-calcium based grease to protect
roller bearings; temperature range between -20 C
and +120 C; NLGI 2; ISO-L-XBCIB2.
- Using the special tool, tighten the first ring-nut on the steering tube to a holding torque, then tighten
completely.
Locking torques (N*m)
Holding torque of lower ring nut 20 ÷ 25
- Tighten to the prescribed torque.
Locking torques (N*m)
Steering lower ring nut 10 - 13 **
- Install the space washer.
- Using the special tool, tighten the second locking ring nut on the steering tube to the prescribed torque.
Locking torques (N*m)
Upper steering ring nut 36 - 39
Nexus 500 euro 3 Suspensions
SUSP - 299
