Refitting

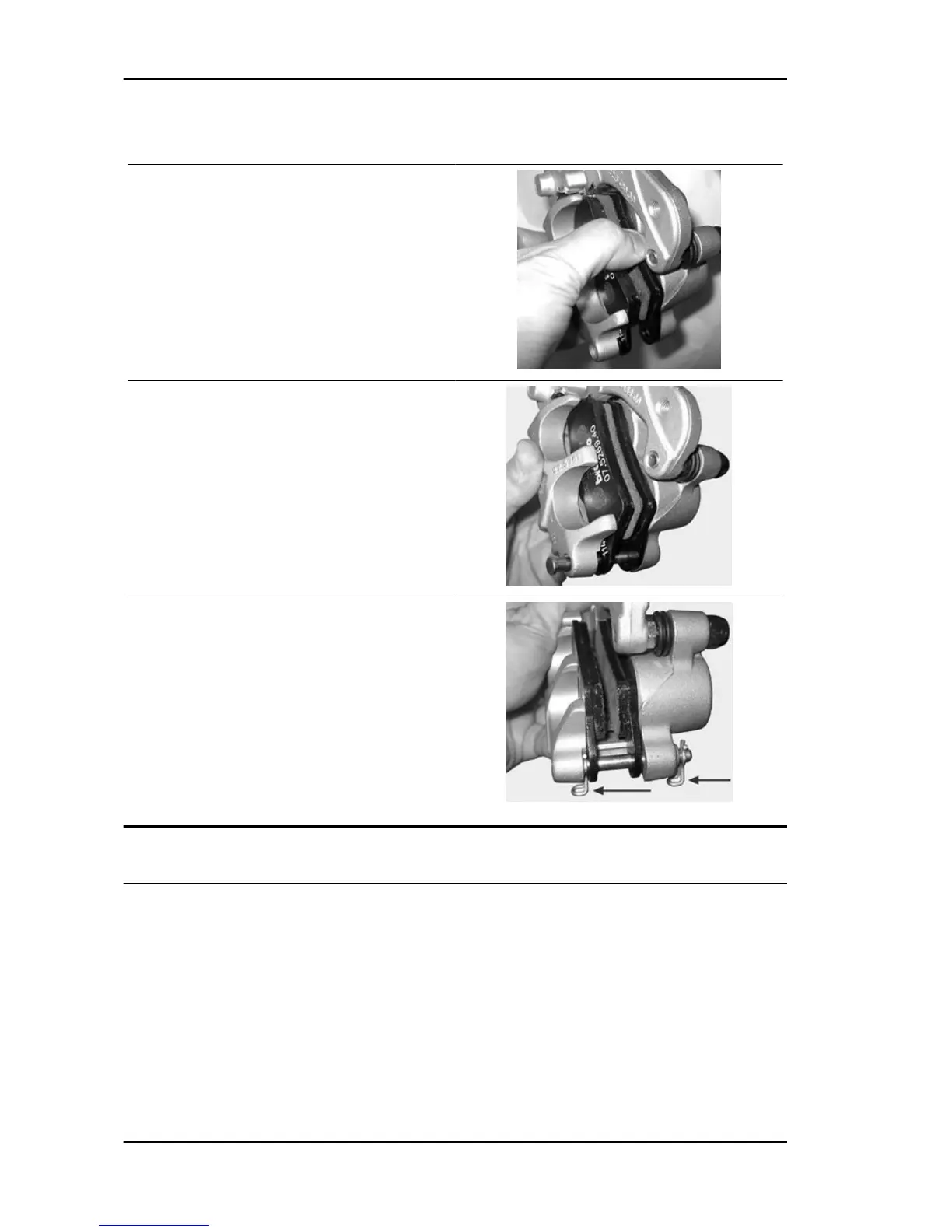

- Assemble the brake pads into the calliper insert-
ing the upper tip into the groove and pressing it
towards the thrust spring to facilitate inserting the
pin.
- Insert the pad fixing pin from the reaction plate
side, so that the pin head clicks in the seat in the
groove on that plate.
- Insert the 2 locking split pins of the pin orientating
the heads towards the calliper body as shown in
the figure.
Rear brake pads
Braking system Nexus 500 euro 3
BRAK SYS - 320
