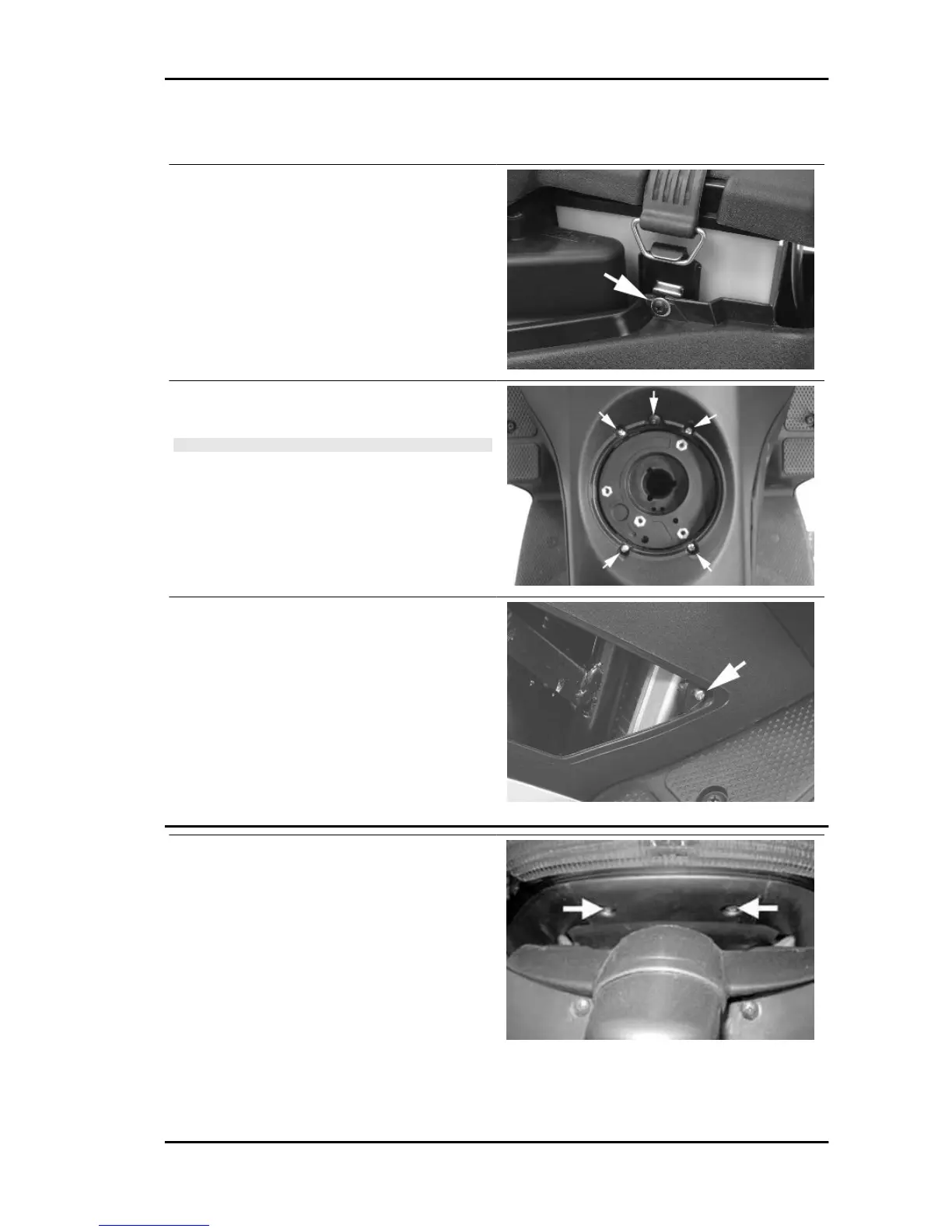

Frame central cover
- Remove the saddle.
- Remove the two screws in the battery compart-
ment shown in the figure.
- Remove the fuel tank flap.
- Remove the 5 screws indicated in the figure.
CAUTION
PROVISIONALLY PROTECT THE NECK OF THE FUEL
TANK USING A CLEAN CLOTH TO PREVENT ANY DIRT OR
OBJECTS ACCIDENTALLY FALLING INTO THE TANK.
- Remove the lateral air conveyors and loosen the
two screws shown in the figure.
- Remove the cover, unscrewing it from its retain-
ers.
- Remove the two screws indicated in the figure.
Nexus 500 euro 3 Chassis
CHAS - 341
