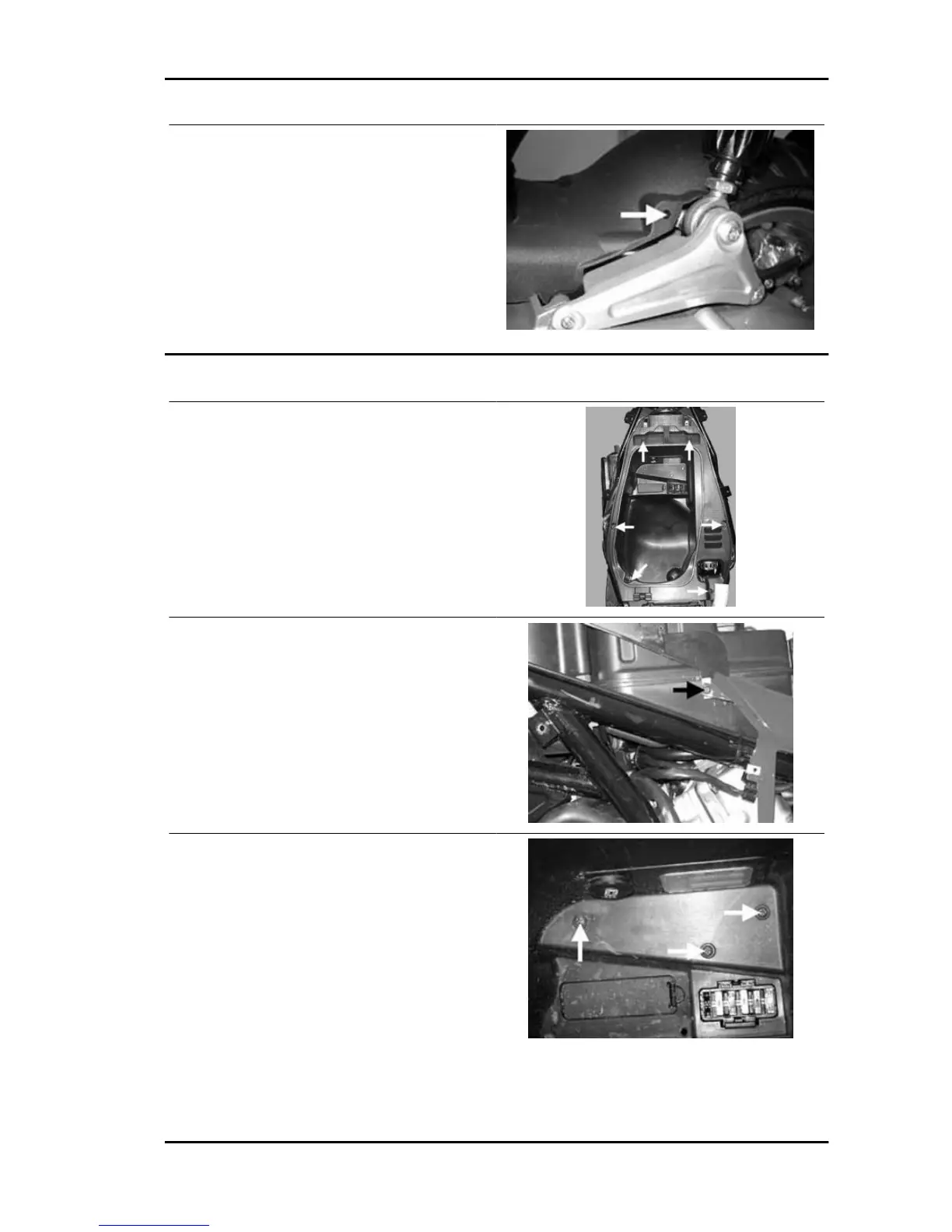

- Remove the retainer of the mudguard/strut rein-
forcement plate to remove the complete mud-
guard.
Helmet bay
- Remove the side panels
- Remove the six upper clamping screws.
- Remove the 2 lateral retaining screws with the
central covers.
- Remove the 3 screws located inside the com-
partment in the rear part providing the mounting
for the electrical system of the saddle opening de-
vice and for the support of the transmission.
- Disconnect the connectors of the power socket and the under-saddle light.
- Remove in turn the complete power socket due to the interference with the frame.
- Remove the fuse holder assembly, disconnecting the lateral retaining tab.
