1. Magneto flywheel
2. Voltage regulator
12. Key switch
14. Main fuse
15. Fuse box B
18. Engine stop remote control
19. Diode
20. Battery
21. Starter motor
22. Start-up remote control switch
23. Starter push button
24. Starter enable remote control
25. Engine stop switch
26. Centre stand switch
27. Rear brake stop button
28. Front brake stop button
36. Twin filament bulb position light / stop light

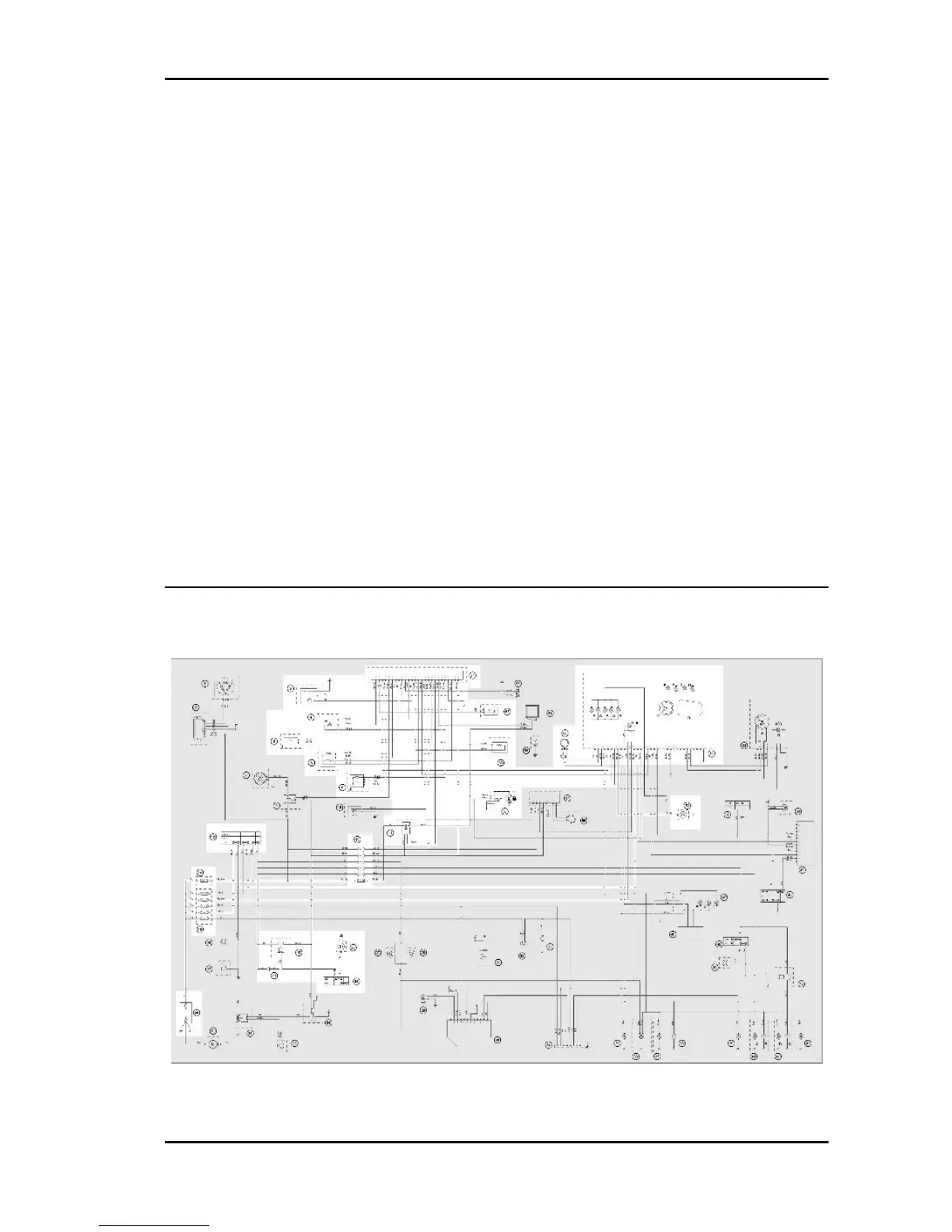

Level indicators and enable signals section
KEY
Nexus 500 euro 3 Electrical system
ELE SYS - 51
