Gilera 633721 - Page 53

Devices and accessories

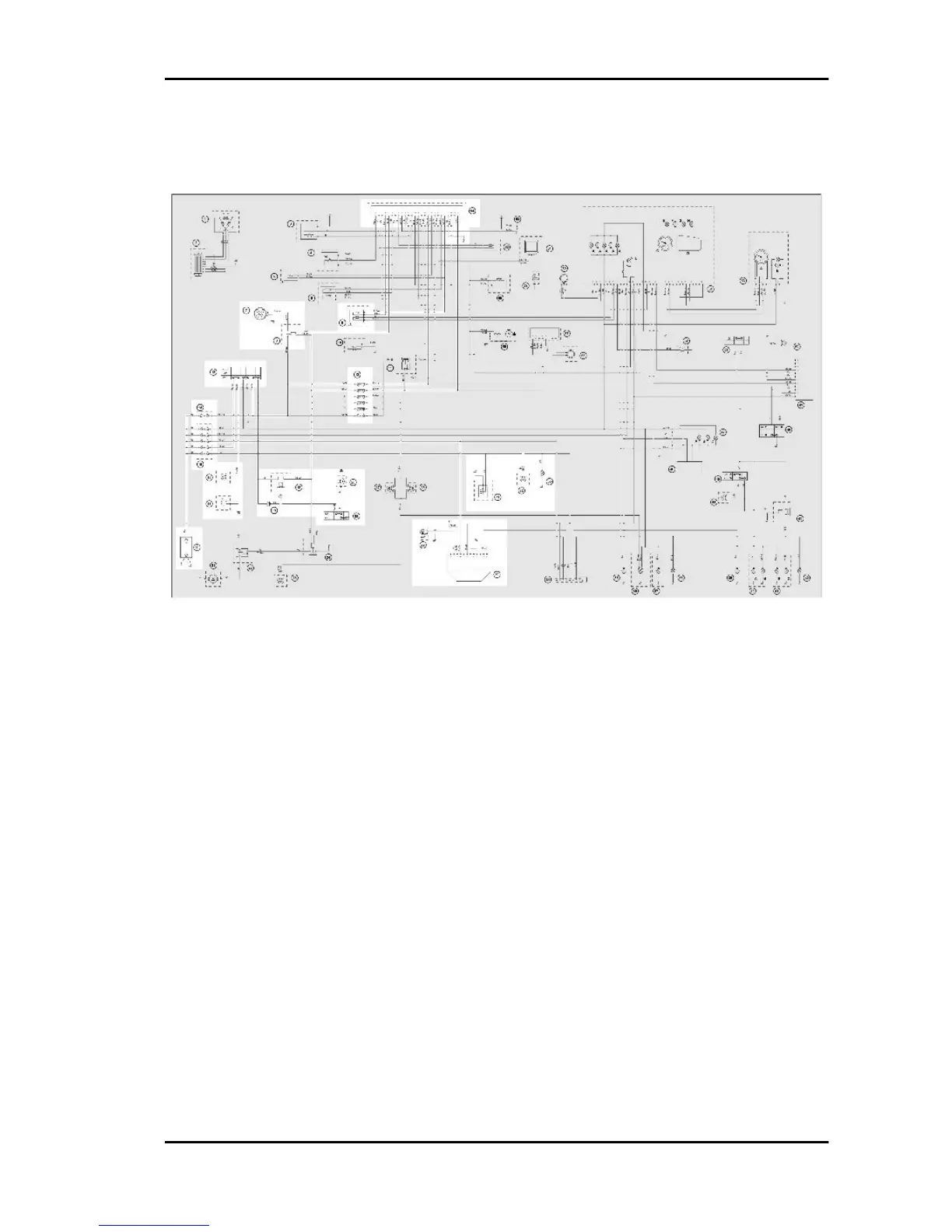

KEY
7. Electric fan
8. Engine temperature sensor
9. Remote control for electric fan
12. Key switch
13. Fuse box A
14. Main fuse
15. Fuse box B
16. Horn button
17. Horn
18. Engine stop remote control
19. Diode
20. Battery
25. Engine stop switch
26. Centre stand switch
29. Saddle opener actuator
30. Saddle opener receiver
31. 12V 180W socket
Nexus 500 euro 3 Electrical system
ELE SYS - 53
