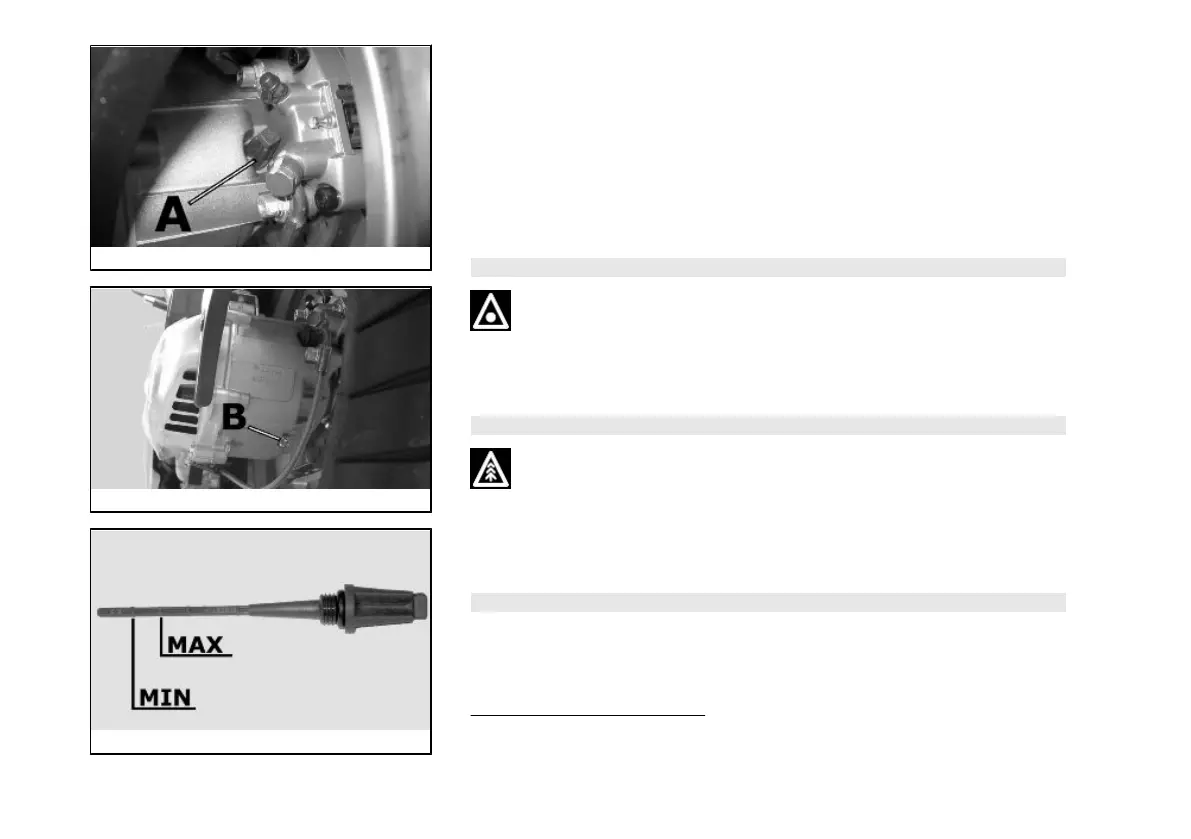

Huboillevel (03_01, 03_02, 03_03)
To check the hub oil level, proceed as follows:
1. Rest the vehicle on its centre-stand and on flat ground;
2. Loosen the oil dipstick «A», dry it with a clean cloth and reinsert it, screwing
it in completely;
3. Remove the dipstick again and check the oil level reaches the 2nd notch
from the bottom;
4. Refit the oil dipstick and tighten it.
The screw «B» is the drainage stopper truncated oil.
CAUTION
RUNNING THE ENGINE WITH INSUFFICIENT LUBRICATION OR WITH THE IN-
ADEQUATE LUBRICANTS ACCELERATES WEAR AND TEAR OF THE MOVING
PARTS AND CAN CAUSE IRRETRIEVABLE DAMAGE.
CAUTION
USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR
OIL REPLACEMENT, CONTACT AN AUTHORISED SERVICE CENTRE WHICH IS
EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY
AND LEGAL WAY.
N.B.
THE NOTCHES ON THE HUB OIL LEVEL DIPSTICK, EXCEPT THE ONE INDI-
CATING THE MAXIMUM AND MINIMUM LEVEL, REFER TO OTHER MODELS BY
THE MANUFACTURER AND HAVE NO SPECIFIC FUNCTION FOR THIS MODEL.
Recommended products
AGIP GEAR SAE 80W-90
Lubricant for gearboxes and transmissions.
