03_21
03_22
03_23

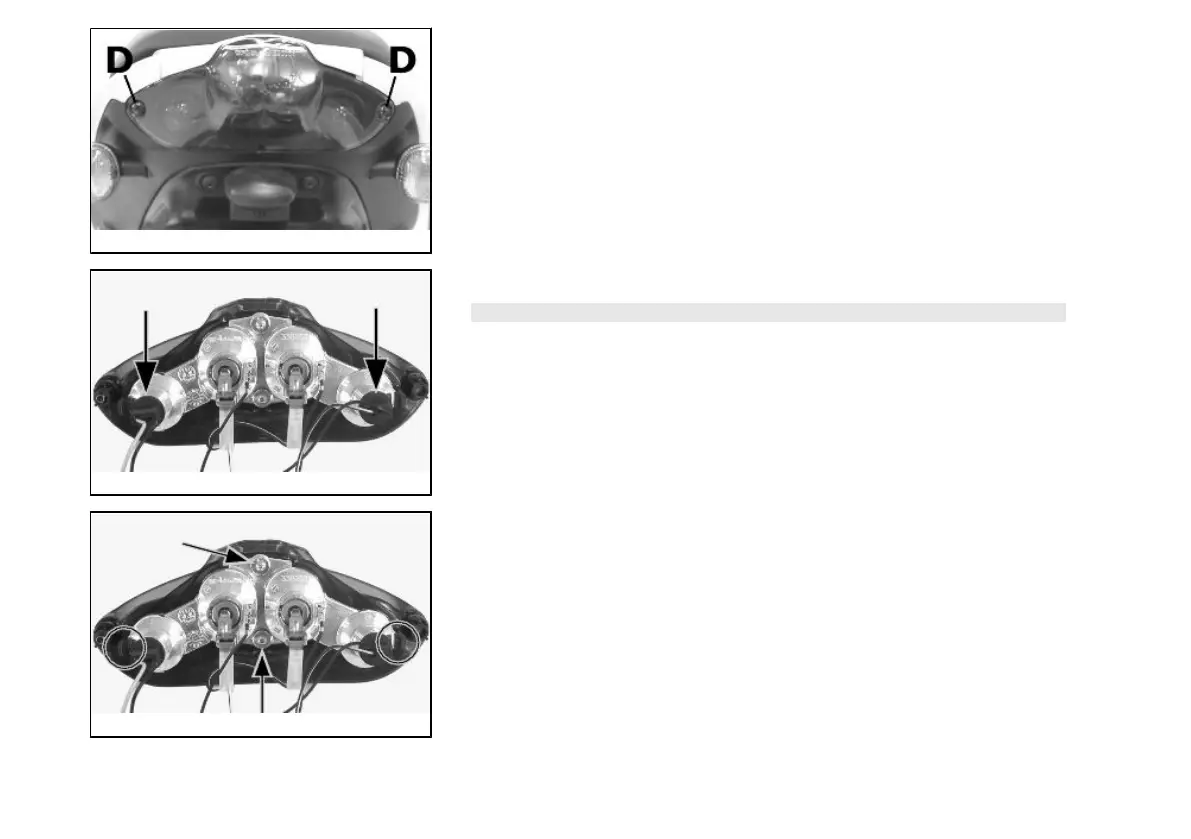

Rearopticalunit (03_21, 03_22, 03_23, 03_24)
To reach the taillight assembly bulbs remove the two screws "D", then pull out the
entire bulb and proceed as follows:
Side tail lights:
The tail light bulbs and bulb sockets are snapped on their corresponding supports. It
is therefore enough to pull bulb socket out of the headlamp in order to fit the new bulb.
Centre stop light bulbs:
In order to reach the stop light bulbs it is necessary to remove the rear light by un-
screwing the two clamping screws that fasten the bulb support and glass together.
Then, release the lateral ratchets, hold the burnt bulb and make a 30º turn to remove
it and fit the new bulb.
WARNING
IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS
DOES NOT INDICATE A FAULT AND IS ATTRIBUTABLE TO HUMIDITY AND/OR
TO LOW TEMPERATURES.
THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS
SWITCHED ON.
46
