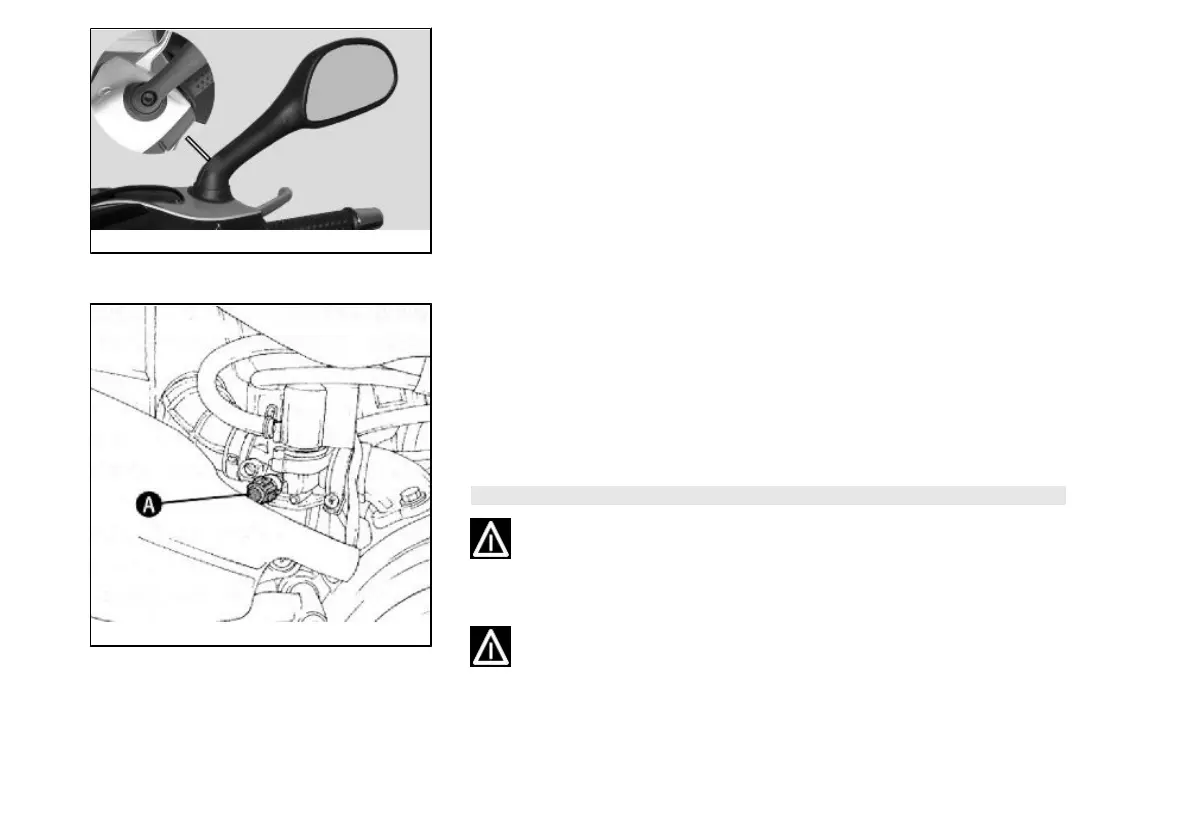

03_26
The mirrors must be adjusted so that the shafts are perpendicular to the vehicle's
direction axis.
To adjust the mirror opening angle loosen the screw fitted at the end of the shaft and
fasten it once the desired position is reached.
03_27
Idleadjustment (03_27, 03_28)
Adjust the idle speed by turning the adjuster screw "A" on the carburetor. To do this
work from the muffler as shown in the figure or lift the saddle and remove the panel
at the bottom of the helmet compartment. Adjust the idle speed with the rear wheel
off the ground (vehicle on its kickstand) and with a warm engine: rotate the screw in
or out until the engine idles. Adjust the slack from the throttle cable using the adjuster
"C" located at the upper part of the carburetor at the end of the operation. Replace the
rubber cap on the adjuster when you have finished.
CAUTION
WHEN ADJUSTING IDLE SPEED, PAY SPECIAL ATTENTION NOT TO TOUCH
THE CATALYTIC MUFFLER TO AVOID BURNS.
SHOULD THERE BE PROBLEMS DURING THE IDLE SPEED ADJUSTMENT OP-
ERATION, IT MAY BE NECESSARY TO ADJUST THE LEVEL OF EXHAUST
EMISSIONS (CO). THIS OPERATION MUST BE CARRIED OUT AT AN AUTHOR-
ISED PIAGGIO-GILERA SERVICE CENTRE.
