Installation 2
Electrical Setup
Fuse Installation
You receive the VALVEMATE without any fuses
installed.
1 Locate the accessory package containing the
fuse drawer appropriate for your line voltage.
Discard the other fuse drawer.
2 Locate the accessory package containing the 2.0
amp fuses.
3 Install the fuse(s) into the fuse drawer. The fuse
drawer for 100/120V accepts one fuse. The fuse
drawer for 220/240V accepts two fuses.
4 Insert the fuse drawer into its receptacle in the
VALVEMATE. See rear panel diagram on page
2-2.

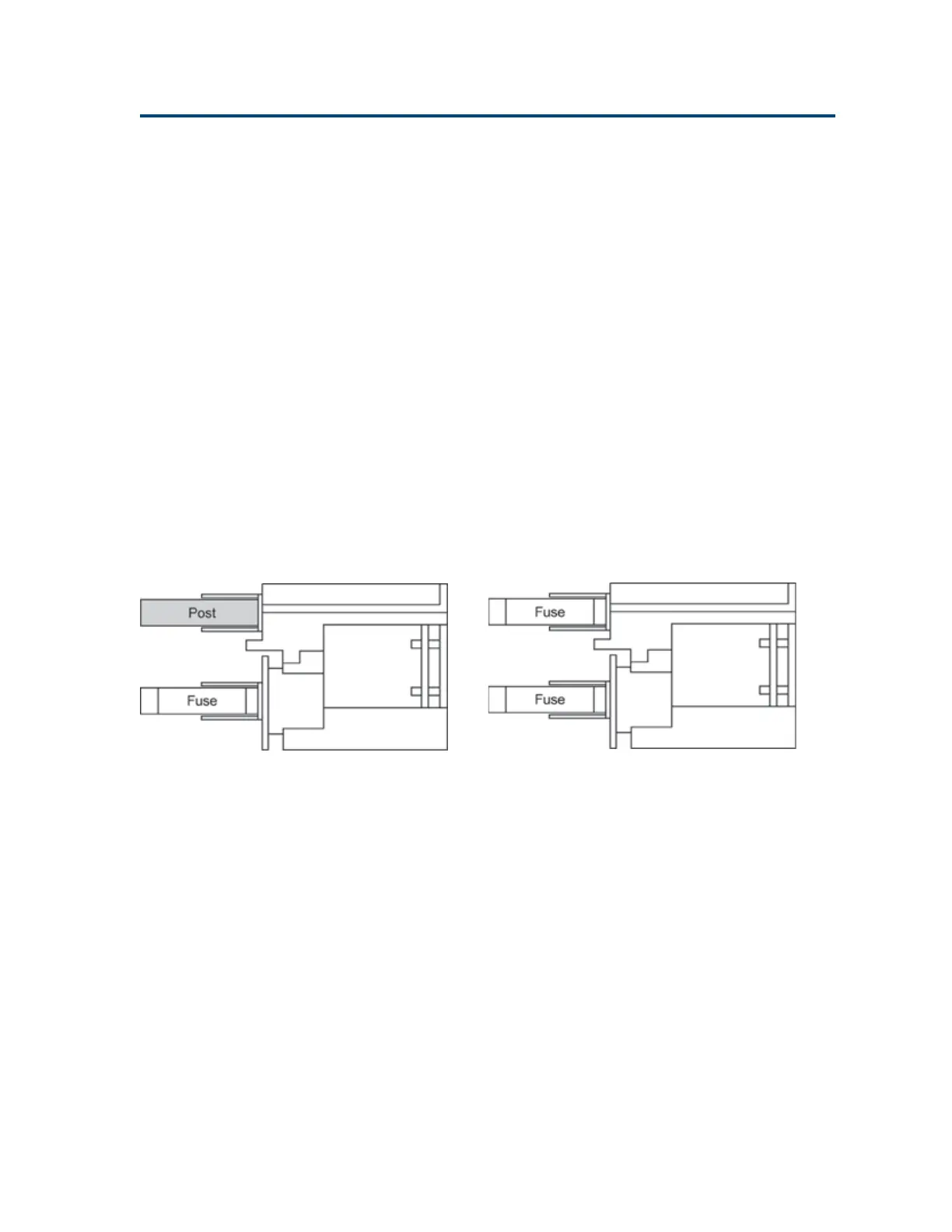

Fuse drawer for 100/120 voltage selection
Fuse drawer for 220/240 voltage selection
