2-13
Installation 2
Valve Installation or Replacement

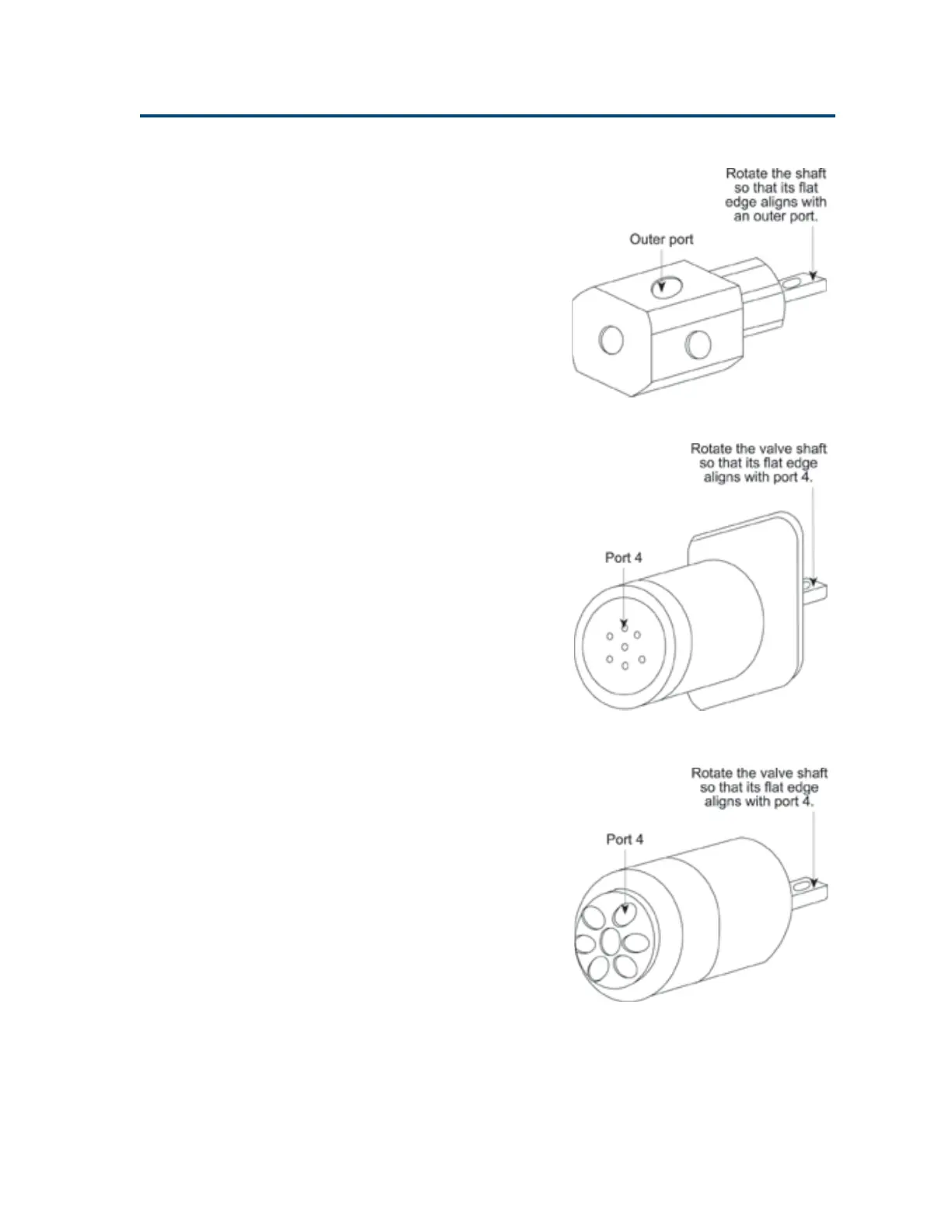

Hamilton 86913, 86915, or 86918 valve. To
place the valve in its home position, do the
following:
• With the selector knob installed, turn the
selector knob and align the white line on the
knob with a valve port.
If the selector knob is not installed, you can
use an adjustable wrench to align the valve
shaft’s flat edge with an outer port.
Rheodyne 5011, 5012, 5031, 5032, 5041, or 5042
valve. To place the valve in its home position,
do the following:
1 If the selector knob is installed, remove the
knob by removing the screw that secures the
knob to the valve.
2 Use an adjustable wrench to align the valve
shaft’s flat edge with port 4.
Rheodyne 7000, 7010, 7030, 7040, 7710, 9010,
9030, or 9710 valve. To place the valve in its
home position:
1 If the selector knob is installed, remove the
knob by removing the screw that secures the
knob to the valve.
2 Insert a hex wrench into the hole in the
valve shaft and rotate the shaft until its flat
edge is aligned with port 4. Or, for a 7710 or
9710 valve, use an adjustable wrench to
align the valve shaft’s flat edge with port 4.
