graph" will also be changed.

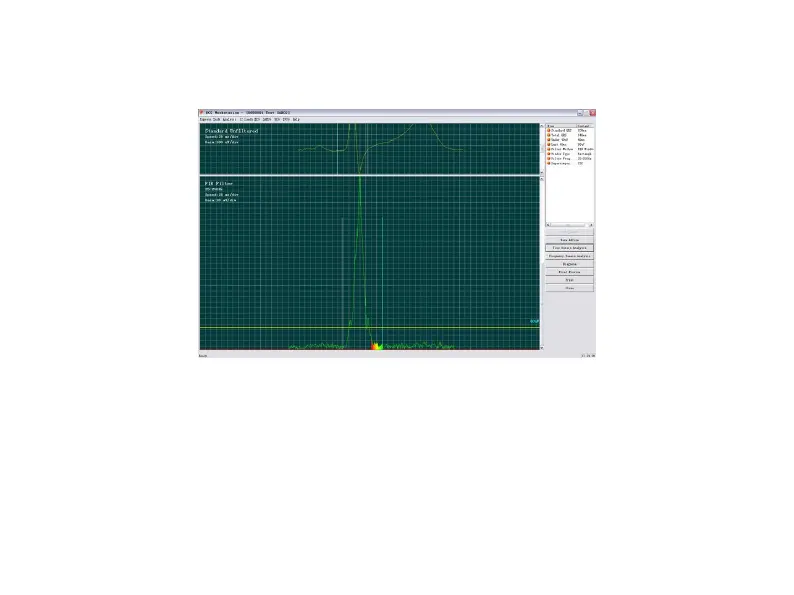

Time Domain Analysis is shown as Figure 97:
Figure 97
In this interface, you can also adjust the vertical line of "No filter wave". You can also use the
same method to adjust characteristic point position of the waves after filtering.
In "Time Domain Analysis" interface, the upper is single-lead ECG waves via superimposition,
the bottom half part is filtered single-lead ECG waves via superimposition. You can select and
mark by clicking the left key of mouse.
1. You can move ORS start point of unfiltered wave by pressing the left or right key.
2
. You can move ORS end point of unfiltered wave by pressing the left or right key.
