Gima CONTEC 8000 User Manual

1
23
9.2.10 SAECG
VLP is a sharp wave that appears at the end of QRS waves and ST Segment, which has the
characteristic of high frequency and low amplitude with an equipotential activity sometimes.
Most of circumstance, VLP almost appears on patient with miocardial infarction.

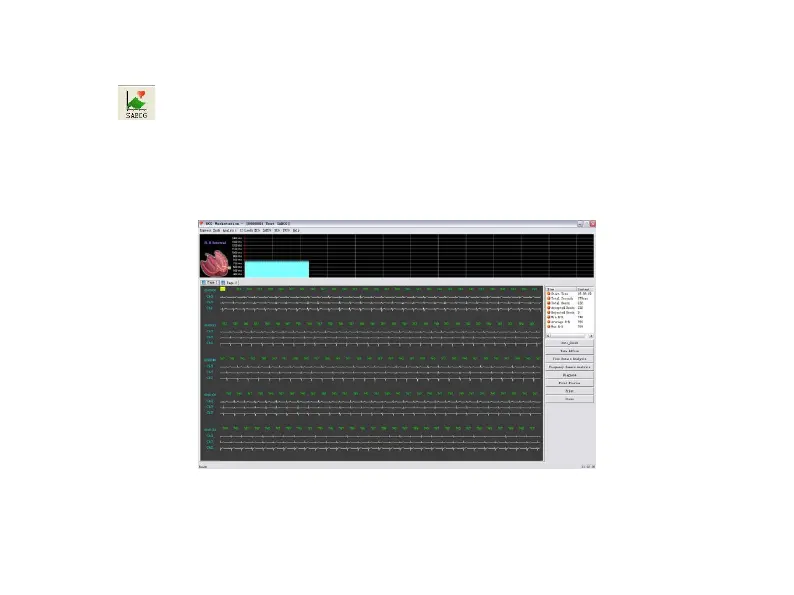

The interface of SAECG is shown as Figure 94:
Figure 94
R
-R interval graph is plotted at the upper interface. You can select a beat in the bottom interface

Gima CONTEC 8000 Specifications

General

Brand	Gima
Model	CONTEC 8000
Category	Desktop
Language	English
