6.2 Frank Lead System

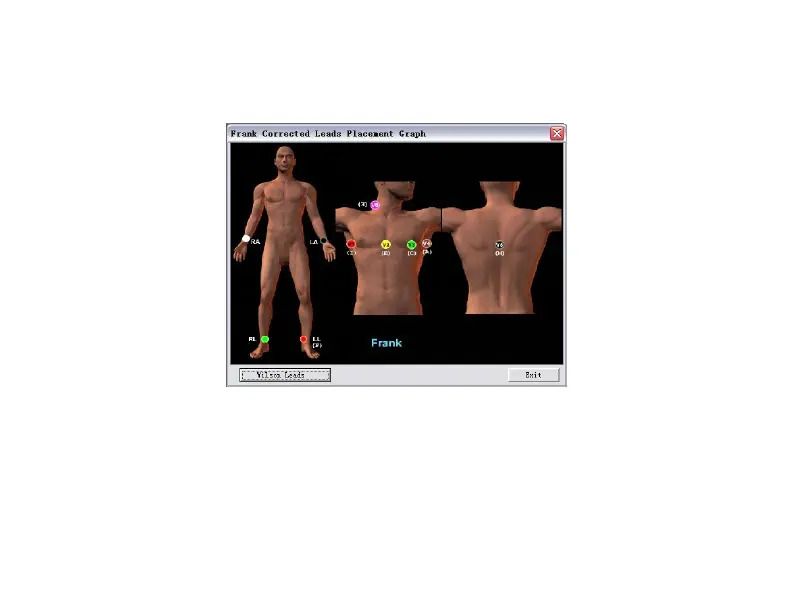

The electrodes placement positions of Frank Lead System are shown as Figure 17.
Figure 17
Chest electrodes installation positions are as followings:
V1: The midline of right armpit, and the fifth ribbing clearance.
V2: The font midline, and the fifth ribbing clearance level.
V3: The mid-point of the line between V2 and V4.
