4. Installation4. Installation

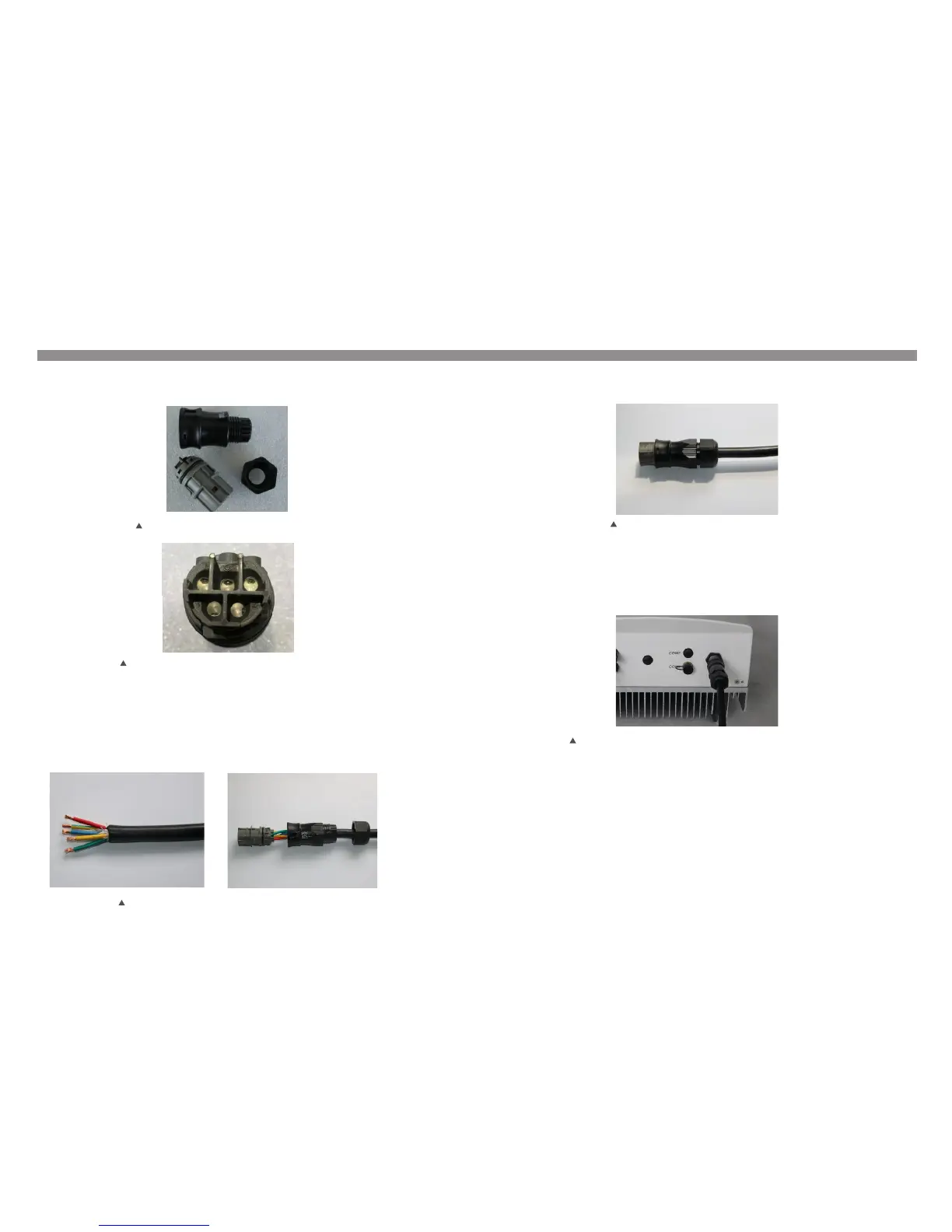

Figure 4.12 AC Grid Terminal Connector
Figure 4.13 AC Grid Terminal Connector Inside
The steps to assemble the AC grid terminal connectors are listed as follows:
Figure 4.14 Connect Wires to the Grid Terminal
Each Solis three phase inverter is supplied with an AC grid terminal connector, which is
in Figure 4.12.
L
N
1
2
G
a) Strip the end of AC wire about 8mm, Insert the cable through the jacket and cap
nut of connector, then insert the wires to the grid terminal and tighten the screws
on the connector (as shown in Figure 4.13). Please try to pull out the wire to make
sure it is well connected.
Figure 4.15 Tighten up the cap on the terminal
c) Connect the AC grid terminal connector to the inverter. Small click will confirm
connection (as shown in Figure 4.16).
Figure 4.16 Connect AC Terminal Connector to the inverter
b) Assemble the connector and tighten up cap on the terminal (as shown in Figure 4.14).
.16. .17.
